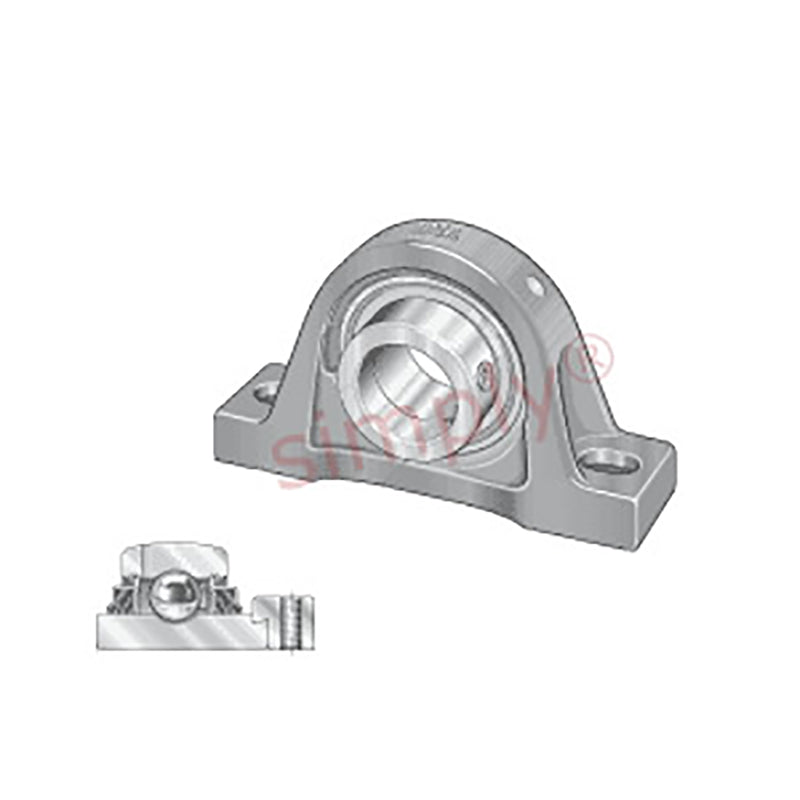

• INA TASE55XL Cast Iron Plummer Block Housing with Eccentric Collar Insert 55mm Bore
  • INA
1 2

SKU: TASE55-XL-INA

INA TASE55XL Cast Iron Plummer Block Housing with Eccentric Collar Insert 55mm Bore

INA TASE55XL Cast Iron Plummer Block Housing with Eccentric Collar Insert 55mm Bore
$178.48 ex VAT
$178.48 ex VAT
Sale Sold out

In stock

Price Break
4+ $119.55
9+ $112.84
19+ $111.49
29+ $110.15
39+ $108.81
49+ $107.46
59+ $100.75
69+ $99.40
79+ $98.06
89+ $96.72
99+ $94.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
55mm
Style:
TASE
Bolt Hole Centres:
176mm
Technical
d 55mm
L 222mm
H2 124.5mm
A 60mm
A1 35mm
B1 71.4mm76mm
H 63.5mm
H1 22.5mm
J 176mm
N 18mm
N1 30mm
Q M6
S1 43.6mm
Mass 3.51 kg
Basic dynamic load rating Cr 46000 N
Basic static load rating Cor 29000 N
Designation of housing ASE11
Designation of bearing GE55-XL-KTT-B
