SKU: TBS-D-06B-45

45 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

45 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
$43.83 ex VAT
$43.83 ex VAT
Sale Sold out

Equivalent to: TS32-45 06B2 TS31-45 32-45

In stock

Price Break
5+ $29.36
9+ $27.71
19+ $27.38
29+ $27.05
49+ $26.72
74+ $26.39
99+ $24.74
199+ $24.41
249+ $24.08
499+ $23.75
999+ $23.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
45
Pitch:
9.53mm = 0.375 (3/8) inch
Item Type:
BS European Standard

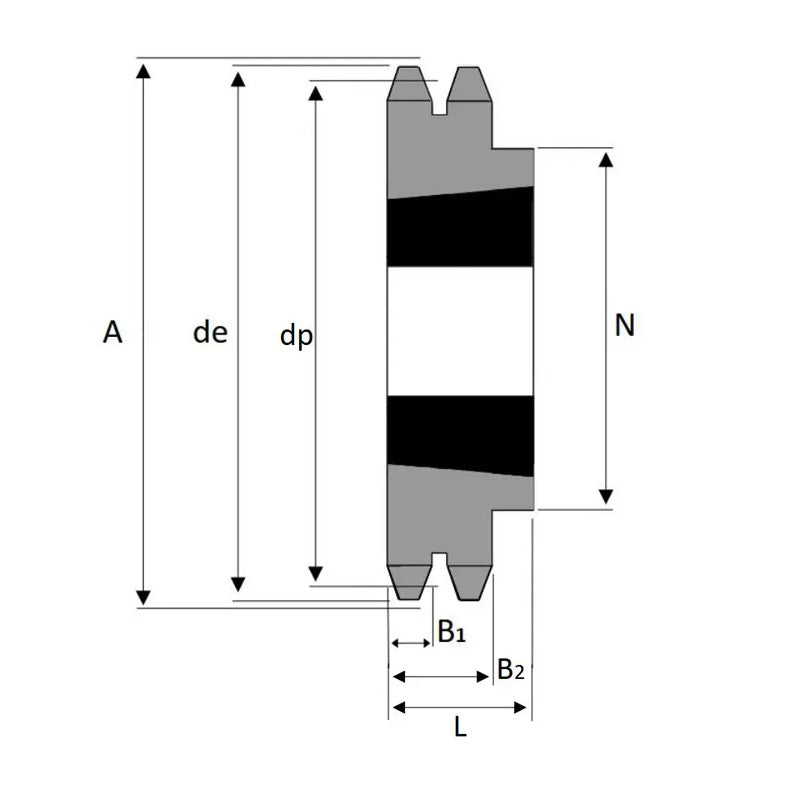

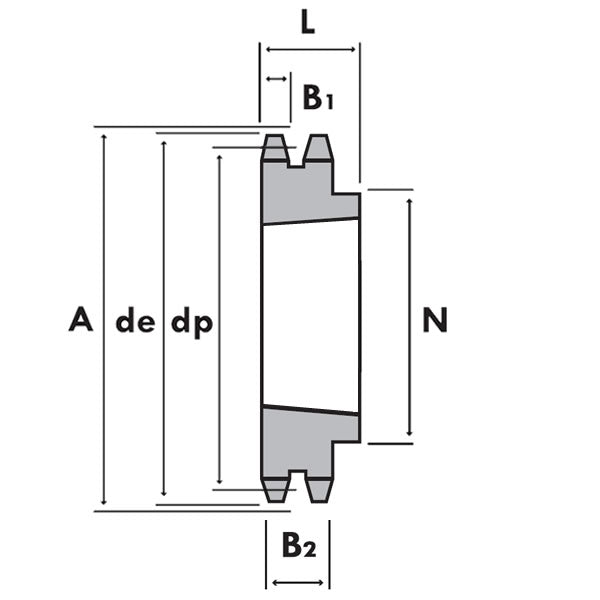

Technical
Tooth Radius r3 10mm
Chamfer c 1mm
Tooth Width b1 5.2mm
Tooth Width B1 5.3mm
Tooth Width B2 15.4mm
Tooth Width B3 25.6mm
Pitch 9.525mm
Width Between Inner 5.72mm
Roller Diameter 6.35mm
No. of Teeth 45
Outer Diameter de 140.7mm
Pitch Diameter dp 136.55mm
Hub Diameter dm 80mm
Length Through Bore A 25mm
Reference 32-45
Taper Bush <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1610+tapered+locking+bush>1610 Click Here</a>
