SKU: TBS-D-08B-45
45 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
- Regular price
- $72.59 ex VAT
- Sale price
- $72.59
- Regular price
-
Not in stock
Quantity Price Breaks
5
$64.61
9
$60.98
19
$60.25
29
$59.52
49
$58.80
74
$58.07
99
$54.44
199
$53.72
249
$52.99
499
$52.26
999
$50.81
SKU:
TBS-D-08B-45
45 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
- Regular price
- $72.59 ex VAT
- Sale price
- $72.59
- Regular price
-
Description

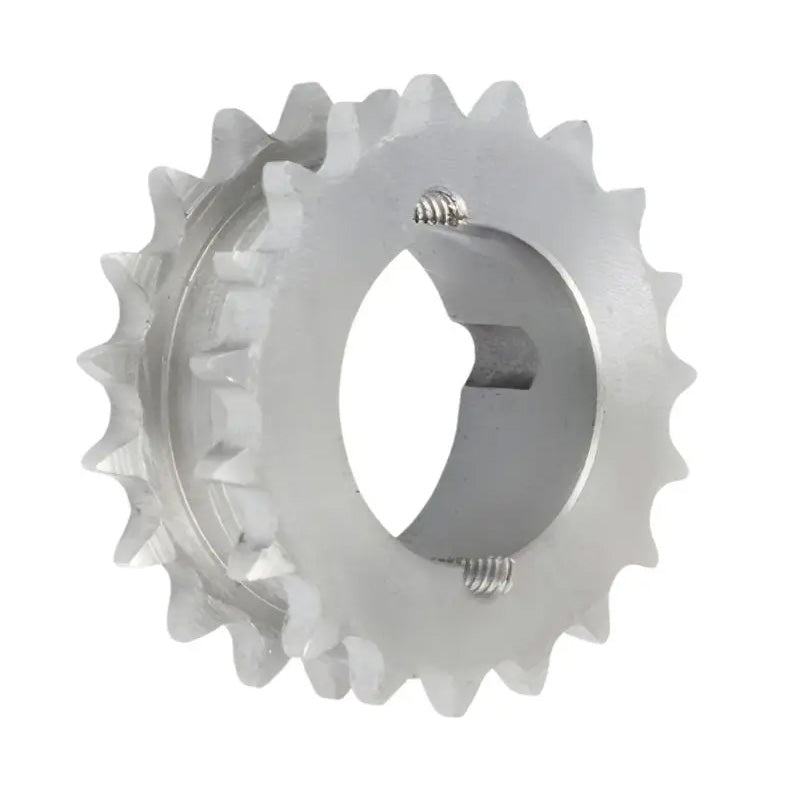

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

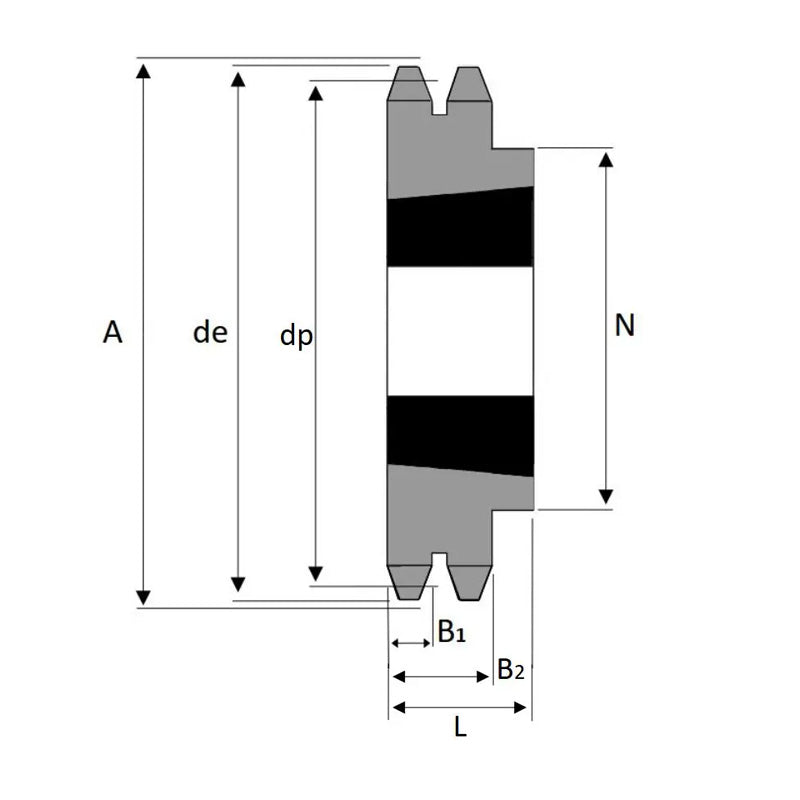

Technical
| Tooth Radius r3 | = | 13mm |
| Chamfer c | = | 1.3mm |
| Tooth Width b1 | = | 7mm |
| Tooth Width B1 | = | 7.2mm |
| Tooth Width B2 | = | 21mm |
| Tooth Width B3 | = | 34.9mm |
| Pitch | = | 12.7mm |
| Width Between Inner | = | 7.75mm |
| Roller Diameter | = | 8.51mm |
| No. of Teeth | = | 45 |
| Outer Diameter de | = | 188mm |
| Pitch Diameter dp | = | 182.07mm |
| Hub Diameter dm | = | 100mm |
| Length Through Bore A | = | 32mm |
| Reference | = | 42-45 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2012+tapered+locking+bush> | = | 2012 Click Here< |
| /a> | = |
