SKU: TBS-D-10B-57

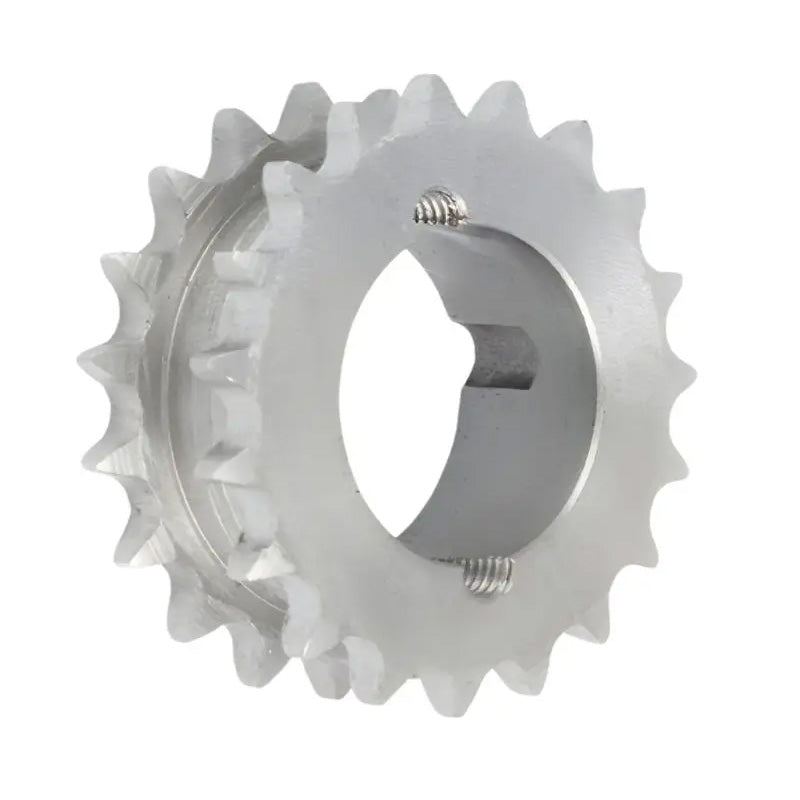

57 Tooth 10B Duplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
- Regular price
- $108.93 ex VAT
- Sale price
- $108.93
- Regular price
-
Not in stock
Quantity Price Breaks
5
$96.95
9
$91.50
19
$90.41
29
$89.32
49
$88.23
74
$87.14
99
$81.70
199
$80.61
249
$79.52
499
$78.43
999
$76.25
SKU:
TBS-D-10B-57
57 Tooth 10B Duplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
- Regular price
- $108.93 ex VAT
- Sale price
- $108.93
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

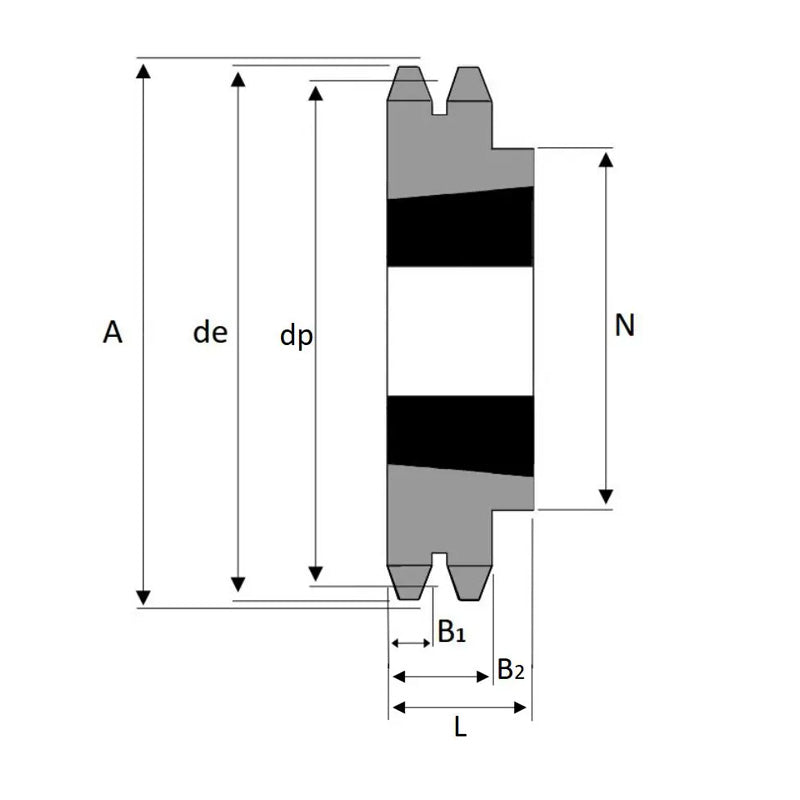

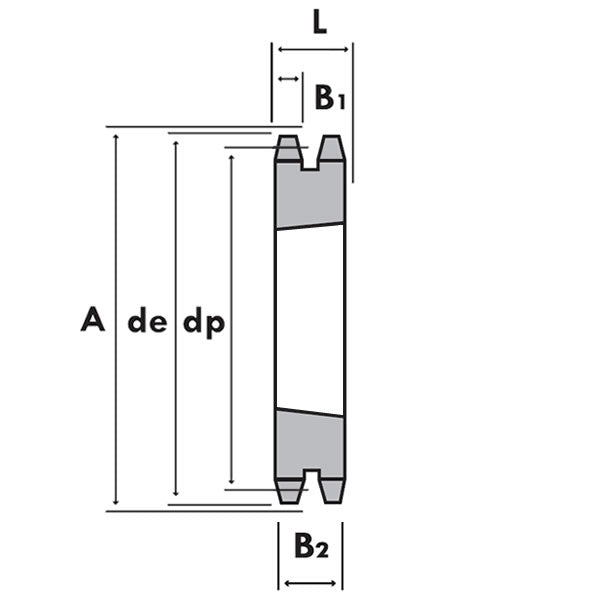

Technical
| Tooth Radius r3 | = | 16mm |
| Chamfer c | = | 1.6mm |
| Tooth Width b1 | = | 9mm |
| Tooth Width B1 | = | 9.1mm |
| Tooth Width B2 | = | 25.5mm |
| Tooth Width B3 | = | 42.1mm |
| Pitch | = | 15.875mm |
| Width Between Inner | = | 9.65mm |
| Roller Diameter | = | 10.16mm |
| No. of Teeth | = | 57 |
| Outer Diameter de | = | 296mm |
| Pitch Diameter dp | = | 288.18mm |
| Hub Diameter dm | = | 110mm |
| Length Through Bore A | = | 45mm |
| Reference | = | 52-57 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2517+tapered+locking+bush> | = | 2517 Click Here< |
| /a> | = |
