SKU: TBS-D-16B-13
13 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
- Regular price
- $57.47 ex VAT
- Sale price
- $57.47
- Regular price
-
In stock
Quantity Price Breaks
5
$51.15
9
$48.27
19
$47.70
29
$47.13
49
$46.55
74
$45.98
99
$43.10
199
$42.53
249
$41.95
499
$41.38
999
$40.23
SKU:
TBS-D-16B-13
13 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
- Regular price
- $57.47 ex VAT
- Sale price
- $57.47
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

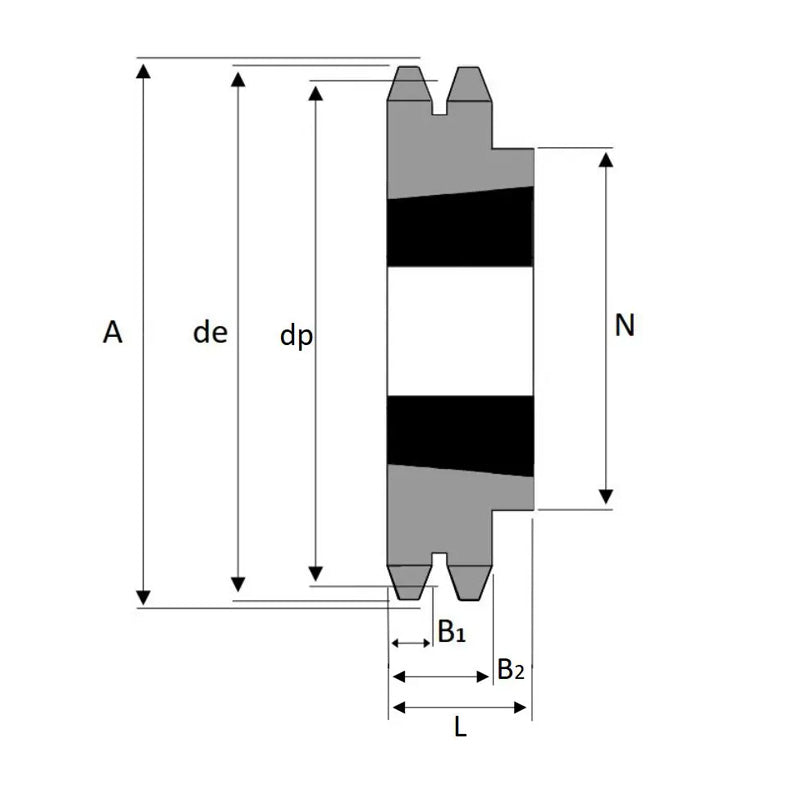

Technical
| Tooth Radius r3 | = | 26mm |
| Chamfer c | = | 2.5mm |
| Tooth Width b1 | = | 15.8mm |
| Tooth Width B1 | = | 16.2mm |
| Tooth Width B2 | = | 47.7mm |
| Tooth Width B3 | = | 79.6mm |
| Pitch | = | 25.4mm = 1 inch |
| Width Between Inner | = | 17.02mm |
| Roller Diameter | = | 15.88mm |
| No. of Teeth | = | 13 |
| Outer Diameter de | = | 117mm |
| Pitch Diameter dp | = | 106.12mm |
| Reference | = | 82-13 |
