SKU: TBS-D-16B-27

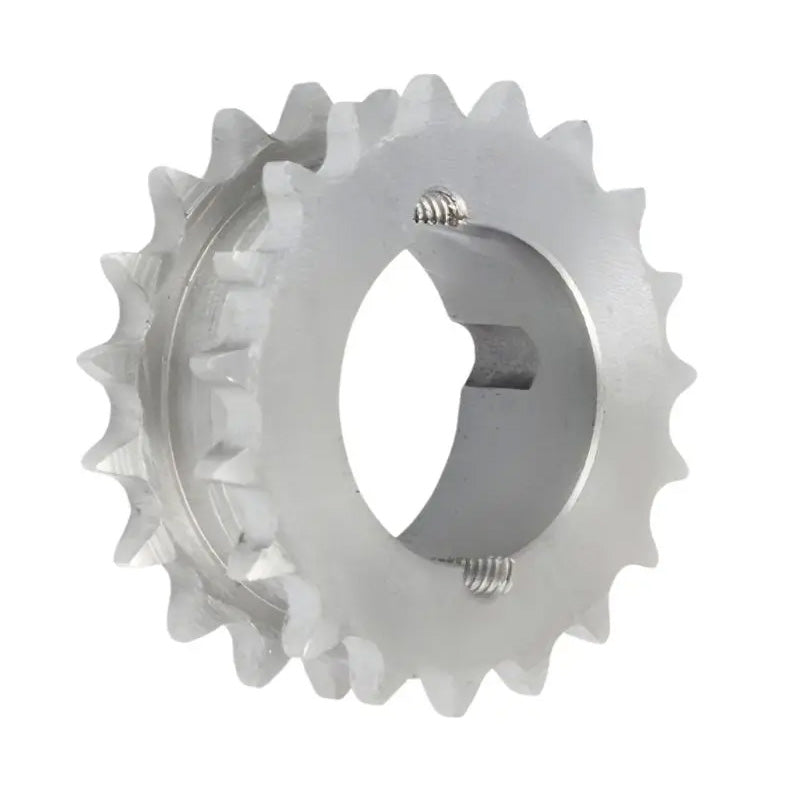

27 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

27 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
$161.37 ex VAT
$161.37 ex VAT
Sale Sold out

Equivalent to: 16B2 TS82-27 82-27

In stock

Price Break
5+ $108.09
9+ $102.02
19+ $100.80
29+ $99.59
49+ $98.37
74+ $97.16
99+ $91.09
199+ $89.87
249+ $88.66
499+ $87.44
999+ $85.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
27
Pitch:
25.4mm = 1 inch
Item Type:
BS European Standard

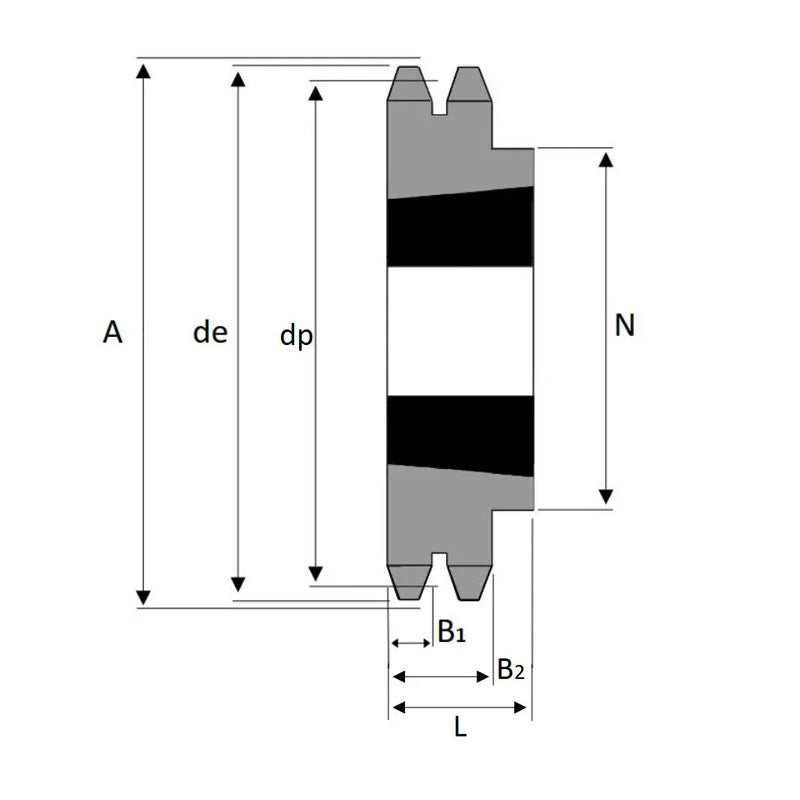

Technical
Tooth Radius r3 26mm
Chamfer c 2.5mm
Tooth Width b1 15.8mm
Tooth Width B1 16.2mm
Tooth Width B2 47.7mm
Tooth Width B3 79.6mm
Pitch 25.4mm
Width Between Inner 17.02mm
Roller Diameter 15.88mm
No. of Teeth 27
Outer Diameter de 229.6mm
Pitch Diameter dp 218.79mm
Hub Diameter dm 140mm
Length Through Bore A 51mm
Reference 82-27
Taper Bush <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush>3020 Click Here</a>
