SKU: TBS-D-16B-45

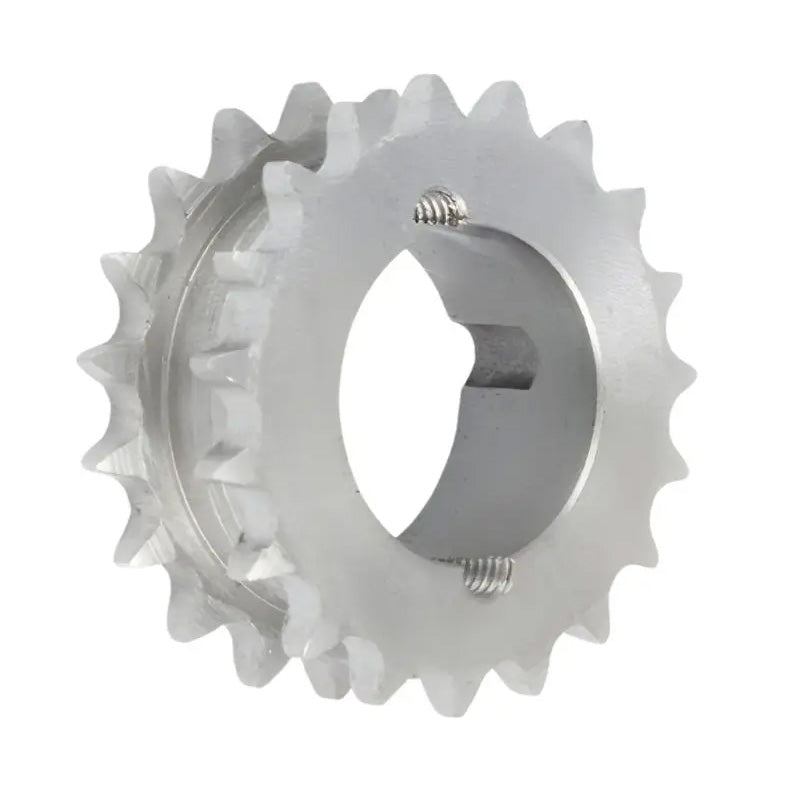

45 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
- Regular price
- $420.98 ex VAT
- Sale price
- $420.98
- Regular price
-
Not in stock
Quantity Price Breaks
5
$374.67
9
$353.62
19
$349.41
29
$345.20
49
$340.99
74
$336.78
99
$315.74
199
$311.53
249
$307.32
499
$303.11
999
$294.69
SKU:
TBS-D-16B-45
45 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
- Regular price
- $420.98 ex VAT
- Sale price
- $420.98
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

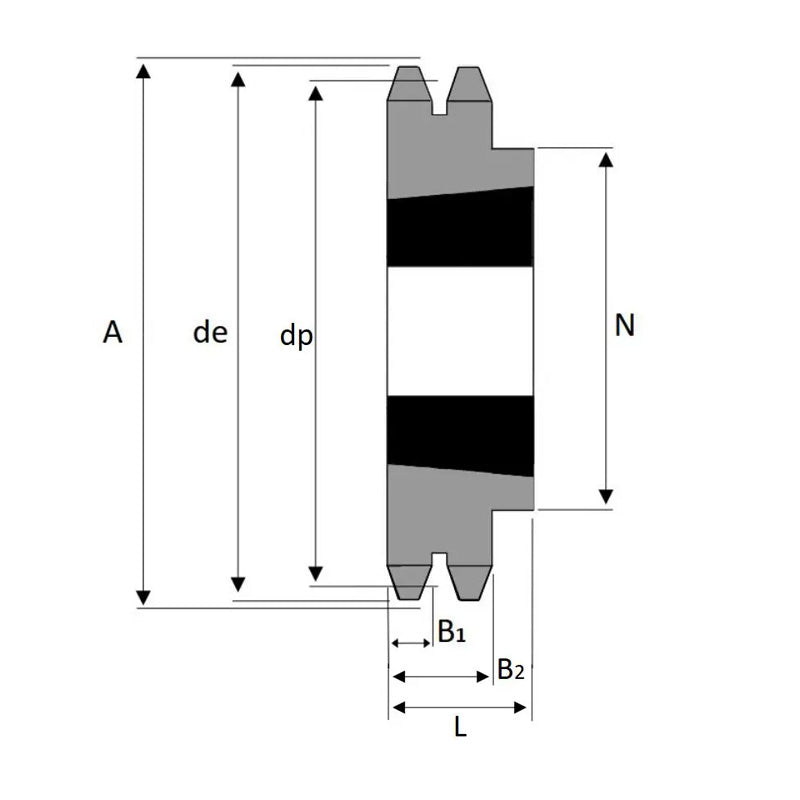

Technical
| Tooth Radius r3 | = | 26mm |
| Chamfer c | = | 2.5mm |
| Tooth Width b1 | = | 15.8mm |
| Tooth Width B1 | = | 16.2mm |
| Tooth Width B2 | = | 47.7mm |
| Tooth Width B3 | = | 79.6mm |
| Pitch | = | 25.4mm |
| Width Between Inner | = | 17.02mm |
| Roller Diameter | = | 15.88mm |
| No. of Teeth | = | 45 |
| Outer Diameter de | = | 377.1mm |
| Pitch Diameter dp | = | 360.13mm |
| Hub Diameter dm | = | 140mm |
| Length Through Bore A | = | 76mm |
| Reference | = | 82-45 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=3030+tapered+locking+bush> | = | 3030 Click Here< |
| /a> | = |
