SKU: TBS-DS-06B-21

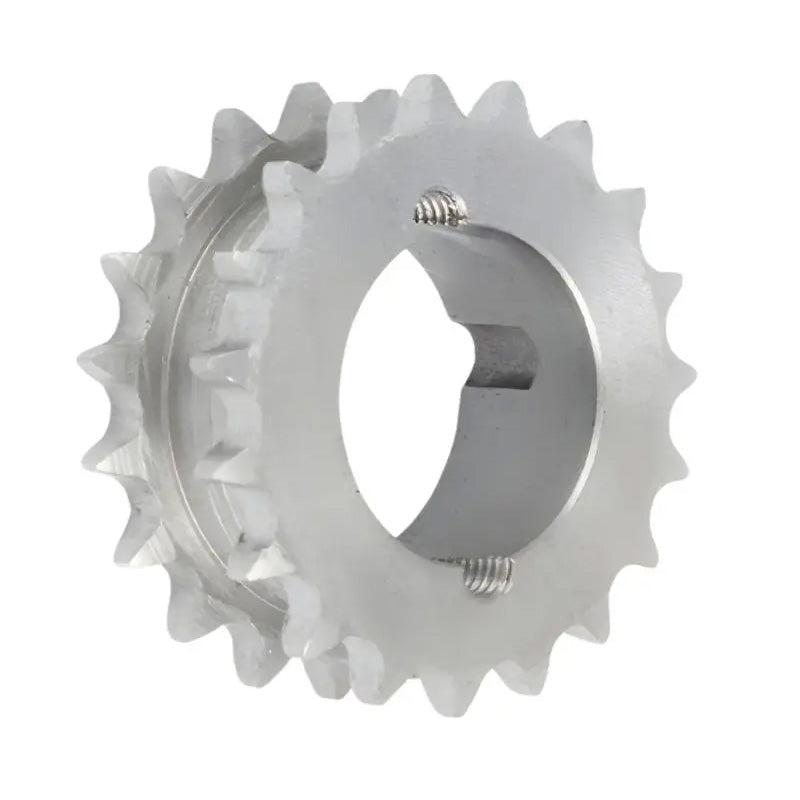

21 Tooth 06B Tapered Bore Double Simplex Sprocket for 3/8 inch Pitch Chain

Name: 21 Tooth 06B Tapered Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
Brand: Major Brand
SKU: TBS-DS-06B-21
Price: 24.21 USD
Availability: InStock

$24.21 ex VAT

Sale Sold out

Equivalent to: 671-004 DS06B1-21TB

In stock

Price Break

5+ $16.22

9+ $15.31

19+ $15.12

29+ $14.94

49+ $14.76

74+ $14.58

99+ $13.67

199+ $13.48

249+ $13.30

499+ $13.12

999+ $12.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Number of Teeth:: 21
Pitch:: 9.53mm = 0.375 (3/8) inch
Item Type:: BS European Standard

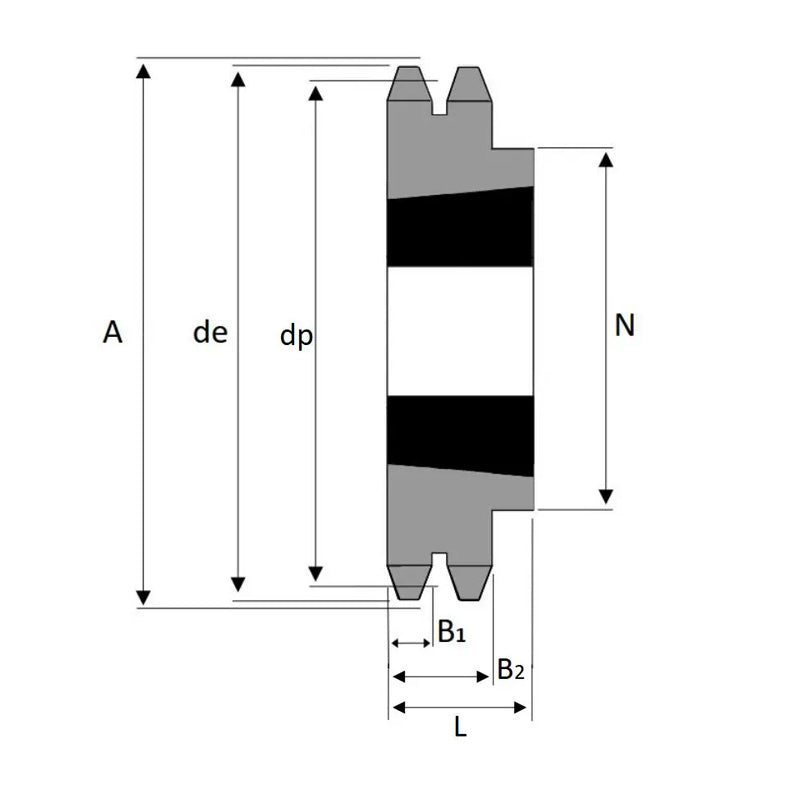

Technical

No. of Teeth	21
Pitch Diameter dp	63.91mm
Outer Diameter de	68mm
Width B	23.5mm
Hub Diameter N	52mm
Chamfer C	1mm
Tooth Radius r3	10mm
Tooth Width b1	5.3mm
Taper Bush Series	<a href="advanced_search_result.php?&keywords=1108+taperlock">1108<span style="color:blue"> Click Here</span></a>
Weight	0.217 kg
