SKU: TBS-DS-06B-25
25 Tooth 06B Tapered Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
- Regular price
- $23.18 ex VAT
- Sale price
- $23.18
- Regular price
-
In stock
Quantity Price Breaks
5
$20.63
9
$19.47
19
$19.24
29
$19.01
49
$18.78
74
$18.54
99
$17.39
199
$17.15
249
$16.92
499
$16.69
999
$16.23
SKU:
TBS-DS-06B-25
25 Tooth 06B Tapered Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
- Regular price
- $23.18 ex VAT
- Sale price
- $23.18
- Regular price
-
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

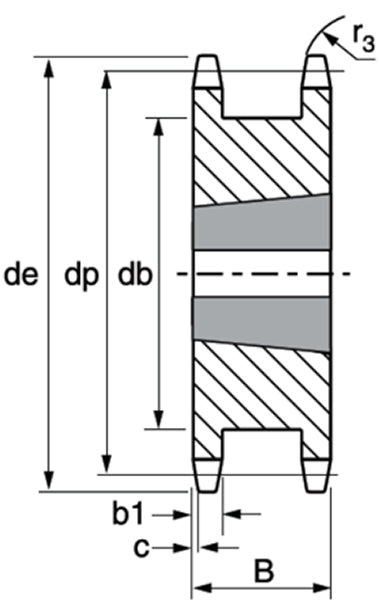

Technical
| No. of Teeth | = | 25 |
| Pitch Diameter dp | = | 76mm |
| Outer Diameter de | = | 80mm |
| Width B | = | 23.5mm |
| Hub Diameter N | = | 64mm |
| Chamfer C | = | 1mm |
| Tooth Radius r3 | = | 10mm |
| Tooth Width b1 | = | 5.3mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=1108+taperlock" | = | > |
| 1108< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 0.371 kg | = | N/A |
