• 12 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
  • 12 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
1 2

SKU: TBS-DS-10B-12

12 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain

12 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
$22.91 ex VAT
$22.91 ex VAT
Sale Sold out

Equivalent to: 671-016 DS10B1-12TB

In stock

Price Break
5+ $15.34
9+ $14.48
19+ $14.31
29+ $14.14
49+ $13.96
74+ $13.79
99+ $12.93
199+ $12.76
249+ $12.58
499+ $12.41
999+ $12.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
12
Pitch:
15.88mm = 0.625 (5/8) inch
Item Type:
BS European Standard

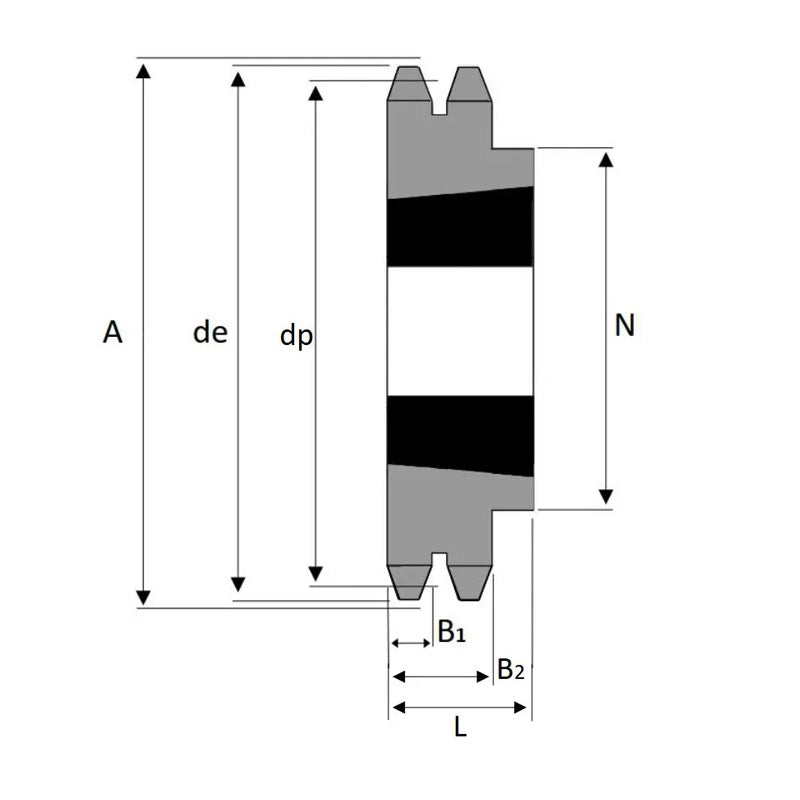

Technical
No. of Teeth 12
Pitch Diameter dp 61.34mm
Outer Diameter de 68mm
Hub Diameter N 45mm
Width B 36.5mm
Chamfer C 1.6mm
Tooth Radius r3 16mm
Tooth Width b1 9.2mm
Taper Bush Series <a href="advanced_search_result.php?&keywords=1108+taperlock">1108<span style="color:blue"> Click Here</span></a>
Weight 0.294 kg
