SKU: TBS-DS-10B-20

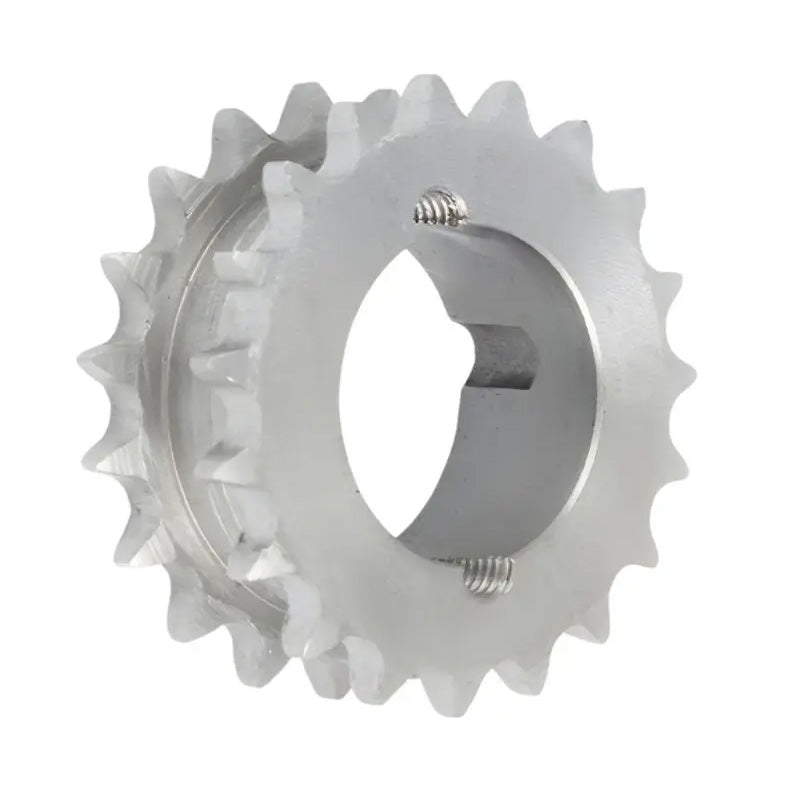

20 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain

20 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
$39.85 ex VAT
$39.85 ex VAT
Sale Sold out

Equivalent to: 671-024 DS10B1-20TB

In stock

Price Break
5+ $26.69
9+ $25.19
19+ $24.89
29+ $24.59
49+ $24.29
74+ $23.99
99+ $22.49
199+ $22.19
249+ $21.89
499+ $21.59
999+ $20.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
20
Pitch:
15.88mm = 0.625 (5/8) inch
Item Type:
BS European Standard

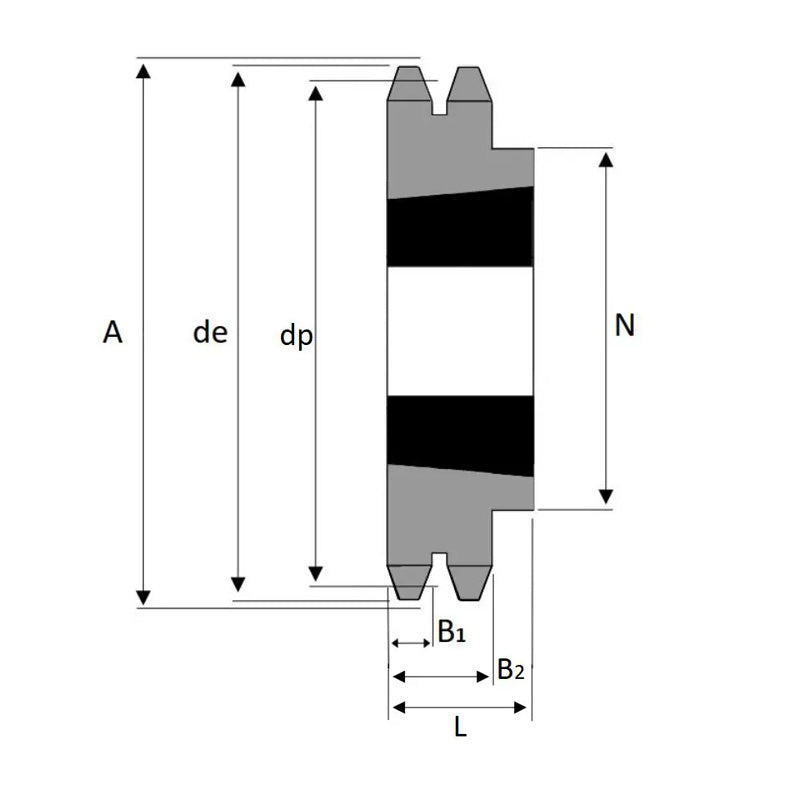

Technical
No. of Teeth 20
Pitch Diameter dp 101.49mm
Outer Diameter de 108.4mm
Hub Diameter N 85mm
Width B 36.5mm
Chamfer C 1.6mm
Tooth Radius r3 16mm
Tooth Width b1 9.2mm
Taper Bush Series <a href="advanced_search_result.php?&keywords=1610+taperlock">1610<span style="color:blue"> Click Here</span></a>
Weight 0.952 kg
