• 25 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
  • 25 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
1 2

SKU: TBS-DS-10B-25

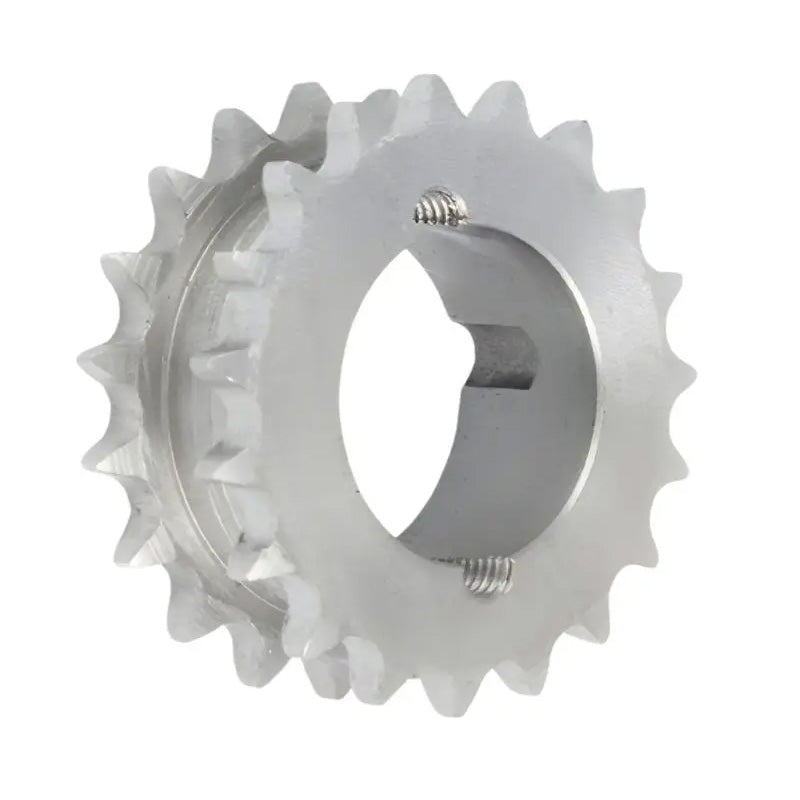

25 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain

25 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
$64.35 ex VAT
$64.35 ex VAT
Sale Sold out

Equivalent to: 671-027 DS10B1-25TB

In stock

Price Break
5+ $43.10
9+ $40.68
19+ $40.19
29+ $39.71
49+ $39.23
74+ $38.74
99+ $36.32
199+ $35.84
249+ $35.35
499+ $34.87
999+ $33.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
25
Pitch:
15.88mm = 0.625 (5/8) inch
Item Type:
BS European Standard

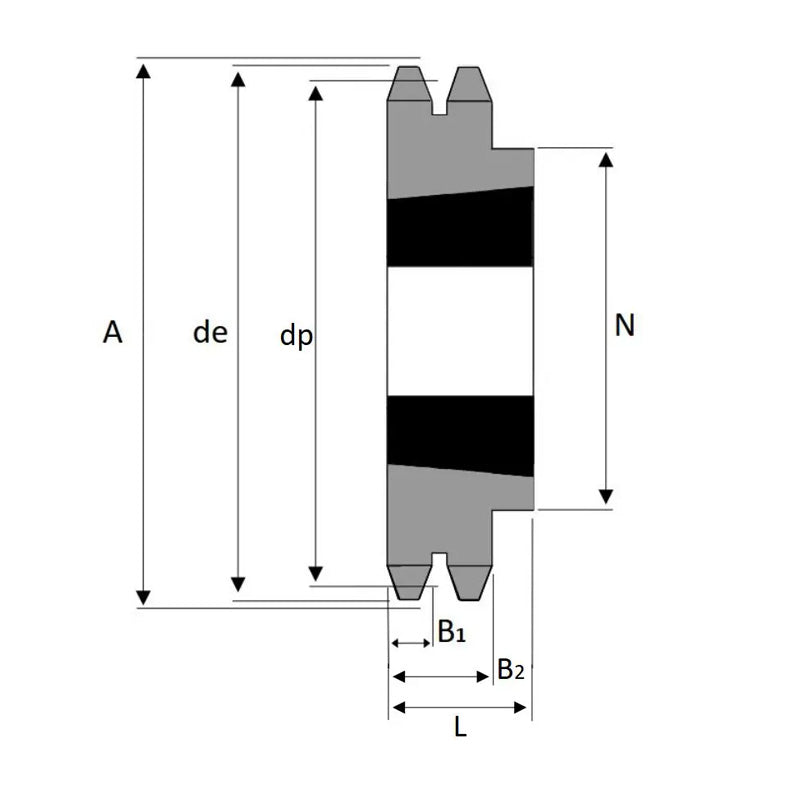

Technical
No. of Teeth 25
Pitch Diameter dp 126.66mm
Outer Diameter de 134mm
Hub Diameter N 110mm
Width B 36.5mm
Chamfer C 1.6mm
Tooth Radius r3 16mm
Tooth Width b1 9.2mm
Taper Bush Series <a href="advanced_search_result.php?&keywords=2012+taperlock">2012<span style="color:blue"> Click Here</span></a>
Weight 1.54 kg
