• 14 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
  • 14 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
1 2

SKU: TBS-DS-12B-14

14 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain

14 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
$41.24 ex VAT
$41.24 ex VAT
Sale Sold out

Equivalent to: 671-029 DS12B1-14TB

In stock

Price Break
5+ $27.62
9+ $26.07
19+ $25.76
29+ $25.45
49+ $25.14
74+ $24.83
99+ $23.28
199+ $22.97
249+ $22.66
499+ $22.35
999+ $21.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
14
Pitch:
19.05mm = 0.75 (3/4) inch
Item Type:
BS European Standard

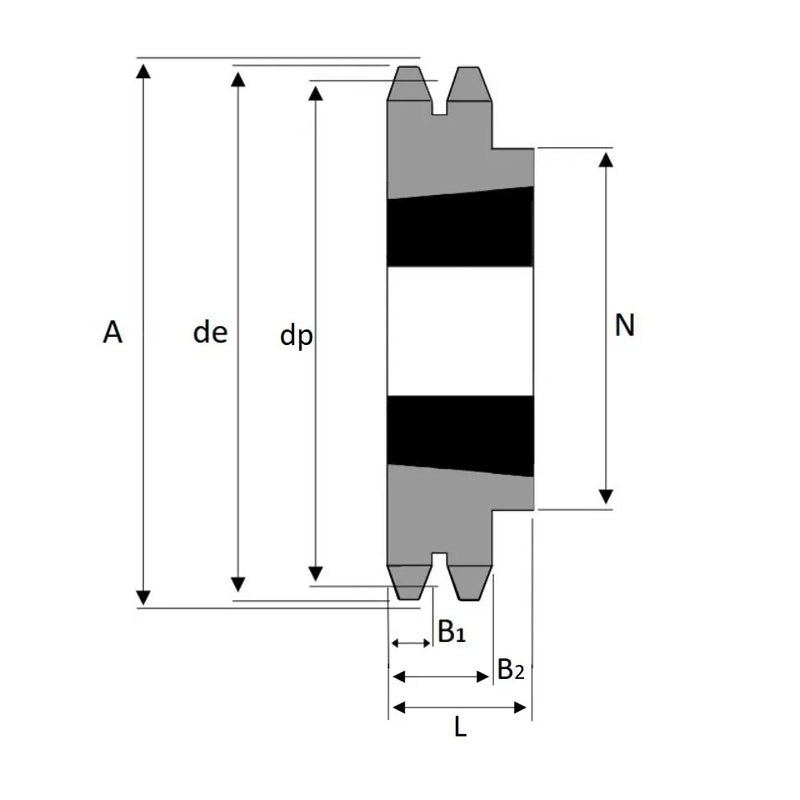

Technical
No. of Teeth 14
Pitch Diameter dp 85.61mm
Outer Diameter de 93.6mm
Width B 45mm
Hub Diameter N 65mm
Chamfer C 45mm
Tooth Radius r3 2mm
Tooth Width b1 19mm
Taper Bush Series <a href="advanced_search_result.php?&keywords=1210+taperlock">1210<span style="color:blue"> Click Here</span></a>
Weight 0.812 kg
