• 16 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
  • 16 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
1 2

SKU: TBS-DS-12B-16

16 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain

16 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
$43.83 ex VAT
$43.83 ex VAT
Sale Sold out

Equivalent to: 671-031 DS12B1-16TB

In stock

Price Break
5+ $29.36
9+ $27.71
19+ $27.38
29+ $27.05
49+ $26.72
74+ $26.39
99+ $24.74
199+ $24.41
249+ $24.08
499+ $23.75
999+ $23.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
16
Pitch:
19.05mm = 0.75 (3/4) inch
Item Type:
BS European Standard

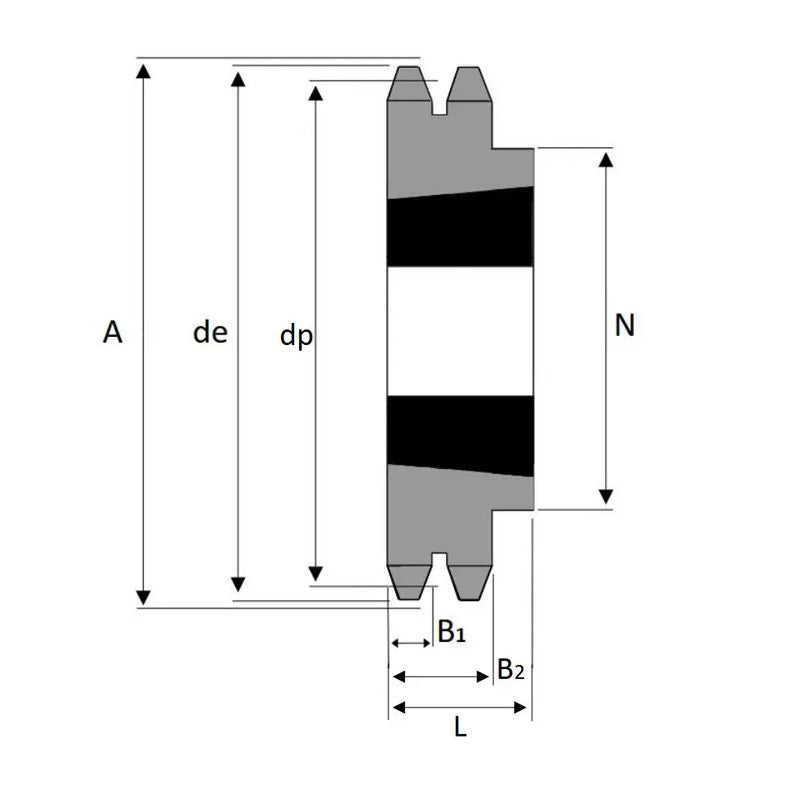

Technical
No. of Teeth 16
Pitch Diameter dp 97.65mm
Outer Diameter de 105.5mm
Width B 45mm
Hub Diameter N 77mm
Chamfer C 45mm
Tooth Radius r3 2mm
Tooth Width b1 19mm
Taper Bush Series <a href="advanced_search_result.php?&keywords=1610+taperlock">1610<span style="color:blue"> Click Here</span></a>
Weight 1.043 kg
