• 17 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
  • 17 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
1 2

SKU: TBS-DS-12B-17

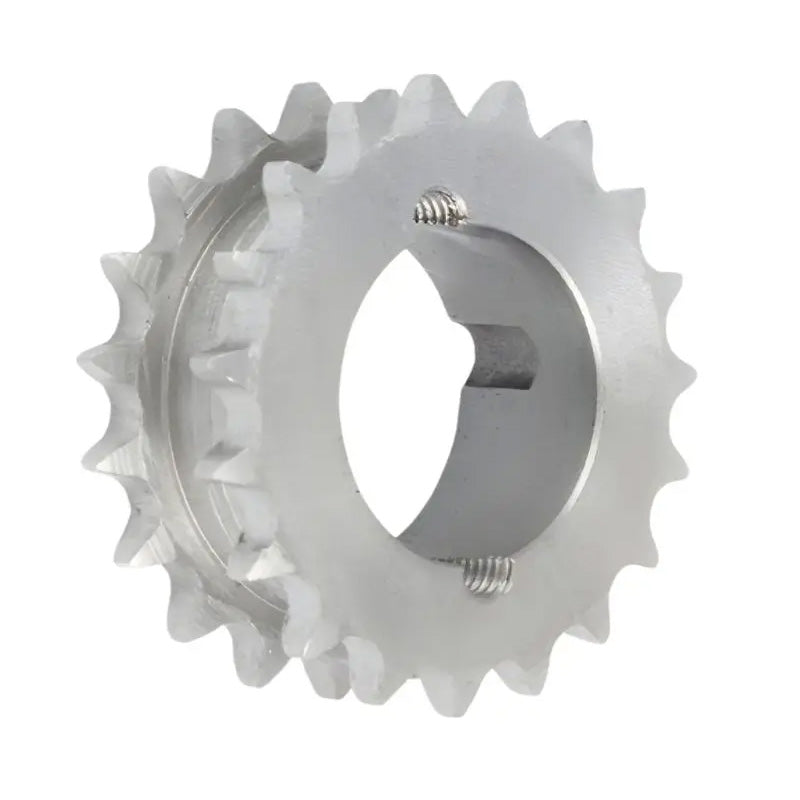

17 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain

17 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
$56.79 ex VAT
$56.79 ex VAT
Sale Sold out

Equivalent to: 671-032 DS12B1-17TB

In stock

Price Break
5+ $38.04
9+ $35.90
19+ $35.47
29+ $35.04
49+ $34.62
74+ $34.19
99+ $32.05
199+ $31.63
249+ $31.20
499+ $30.77
999+ $29.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
17
Pitch:
19.05mm = 0.75 (3/4) inch
Item Type:
BS European Standard

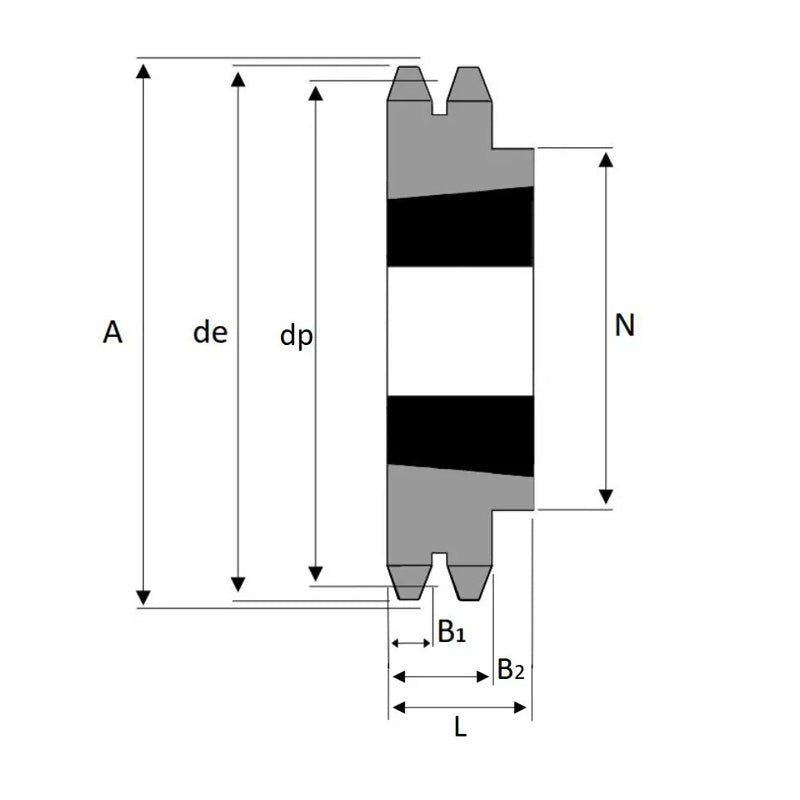

Technical
No. of Teeth 17
Pitch Diameter dp 103.67mm
Outer Diameter de 111.5mm
Width B 45mm
Hub Diameter N 83mm
Chamfer C 45mm
Tooth Radius r3 2mm
Tooth Width b1 19mm
Taper Bush Series <a href="advanced_search_result.php?&keywords=1610+taperlock">1610<span style="color:blue"> Click Here</span></a>
Weight 1.211 kg
