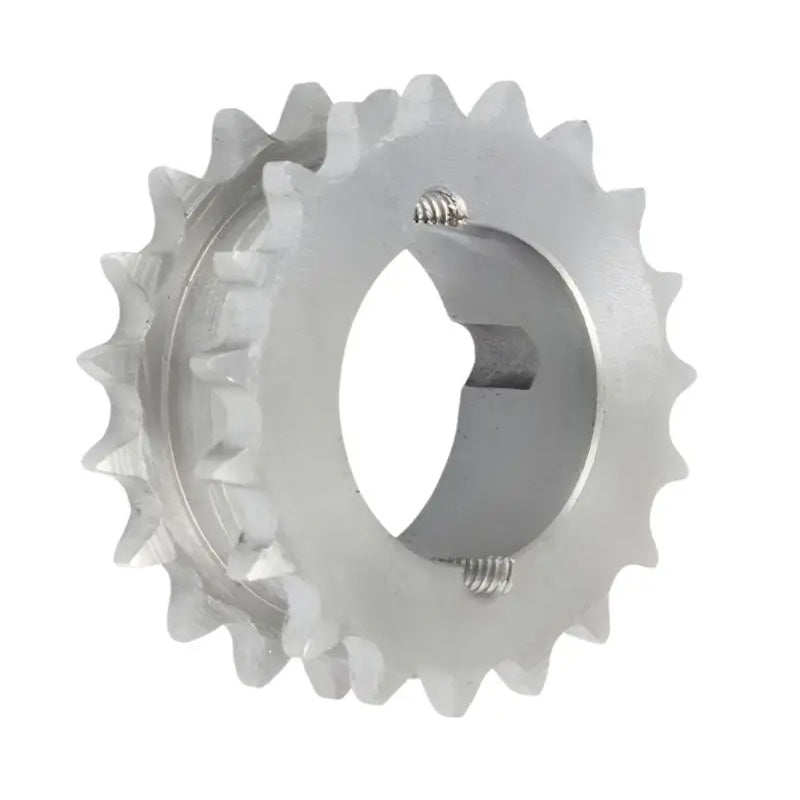

• 19 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
  • 19 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
1 2

SKU: TBS-DS-12B-19

19 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain

19 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
$71.92 ex VAT
$71.92 ex VAT
Sale Sold out

Equivalent to: 671-034 DS12B1-19TB

In stock

Price Break
5+ $48.17
9+ $45.47
19+ $44.93
29+ $44.38
49+ $43.84
74+ $43.30
99+ $40.60
199+ $40.05
249+ $39.51
499+ $38.97
999+ $37.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
19
Pitch:
19.05mm = 0.75 (3/4) inch
Item Type:
BS European Standard

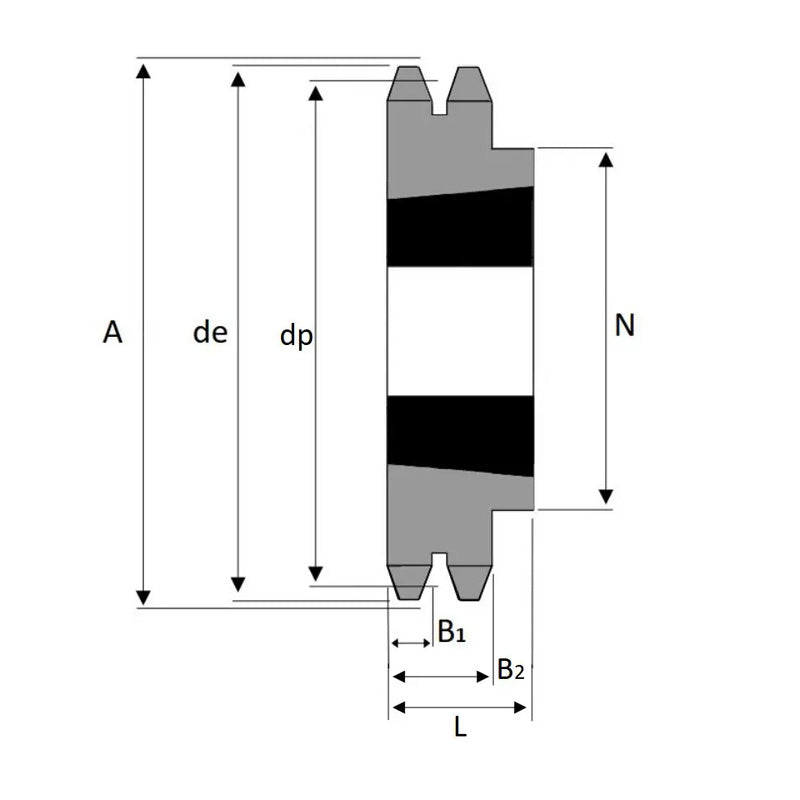

Technical
No. of Teeth 19
Pitch Diameter dp 115.75mm
Outer Diameter de 124.2mm
Width B 45mm
Hub Diameter N 95mm
Chamfer C 45mm
Tooth Radius r3 2mm
Tooth Width b1 19mm
Taper Bush Series <a href="advanced_search_result.php?&keywords=2012+taperlock">2012<span style="color:blue"> Click Here</span></a>
Weight 1.365 kg
