SKU: TBS-DS-12B-20

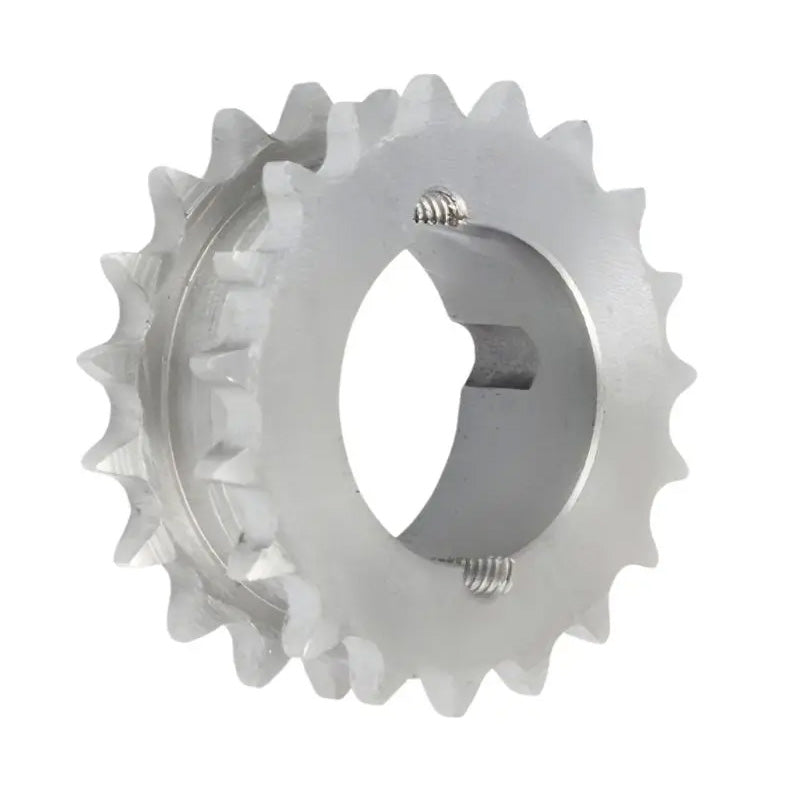

20 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain

20 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
$71.72 ex VAT
$71.72 ex VAT
Sale Sold out

Equivalent to: 671-035 DS12B1-20TB

In stock

Price Break
5+ $48.04
9+ $45.34
19+ $44.80
29+ $44.26
49+ $43.72
74+ $43.18
99+ $40.48
199+ $39.94
249+ $39.40
499+ $38.86
999+ $37.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
20
Pitch:
19.05mm = 0.75 (3/4) inch
Item Type:
BS European Standard

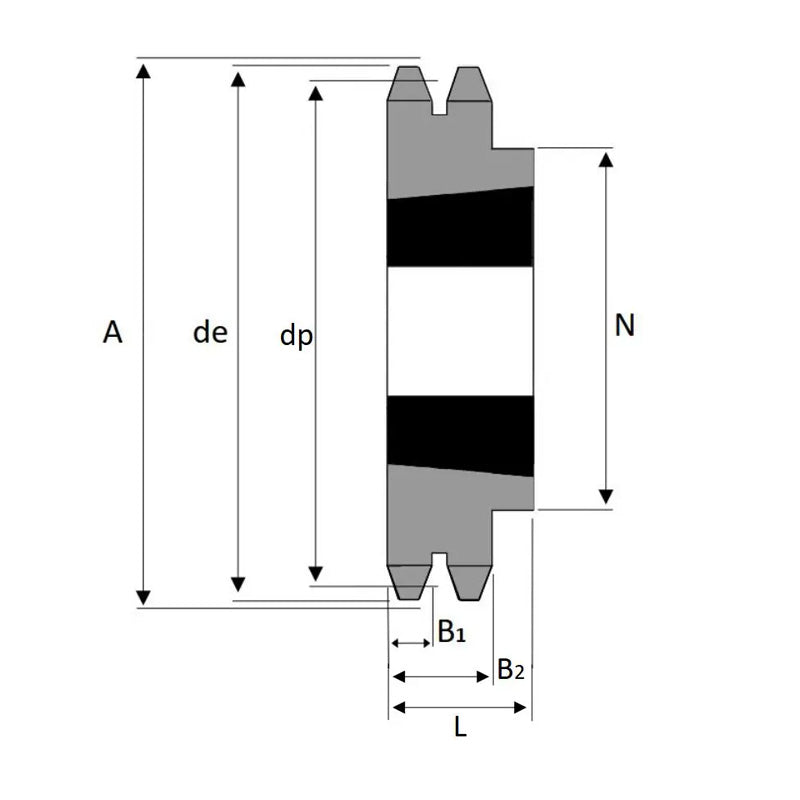

Technical
No. of Teeth 20
Pitch Diameter dp 121.78mm
Outer Diameter de 129.7mm
Width B 45mm
Hub Diameter N 101mm
Chamfer C 45mm
Tooth Radius r3 2mm
Tooth Width b1 19mm
Taper Bush Series <a href="advanced_search_result.php?&keywords=2517+taperlock">2517<span style="color:blue"> Click Here</span></a>
Weight 1.19 kg
