SKU: TBS-DS-12B-23

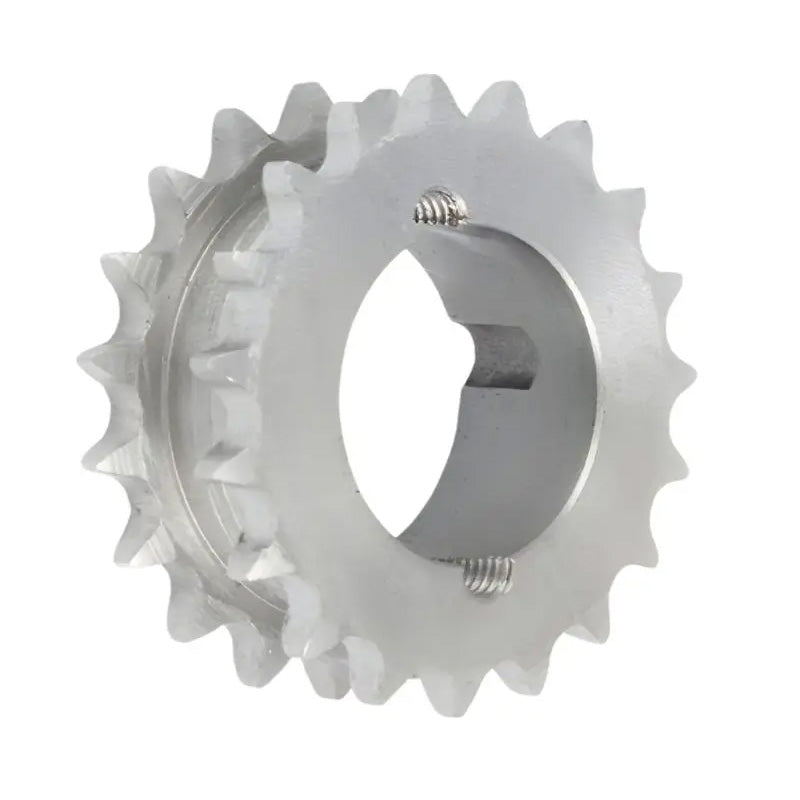

23 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain

23 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
$82.49 ex VAT
$82.49 ex VAT
Sale Sold out

Equivalent to: 671-037 DS12B1-23TB 6DS23TL

In stock

Price Break
5+ $55.25
9+ $52.15
19+ $51.52
29+ $50.90
49+ $50.28
74+ $49.66
99+ $46.56
199+ $45.94
249+ $45.32
499+ $44.70
999+ $43.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
23
Pitch:
19.05mm = 0.75 (3/4) inch
Item Type:
BS European Standard

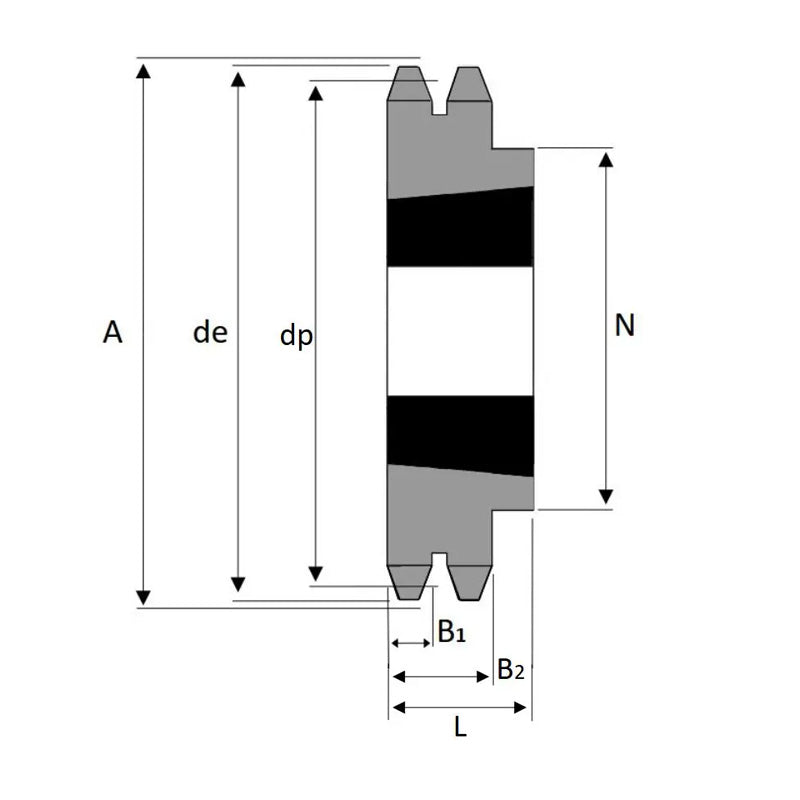

Technical
No. of Teeth 23
Pitch Diameter dp 139.9mm
Outer Diameter de 149mm
Width B 45mm
Hub Diameter N 119mm
Chamfer C 45mm
Tooth Radius r3 2mm
Tooth Width b1 19mm
Taper Bush Series <a href="advanced_search_result.php?&keywords=2517+taperlock">2517<span style="color:blue"> Click Here</span></a>
Weight 1.995 kg
