• 21 Tooth 16B Tapered Bore Double Simplex Sprocket 1 inch Pitch Chain
  • 21 Tooth 16B Tapered Bore Double Simplex Sprocket 1 inch Pitch Chain
1 2

SKU: TBS-DS-16B-21

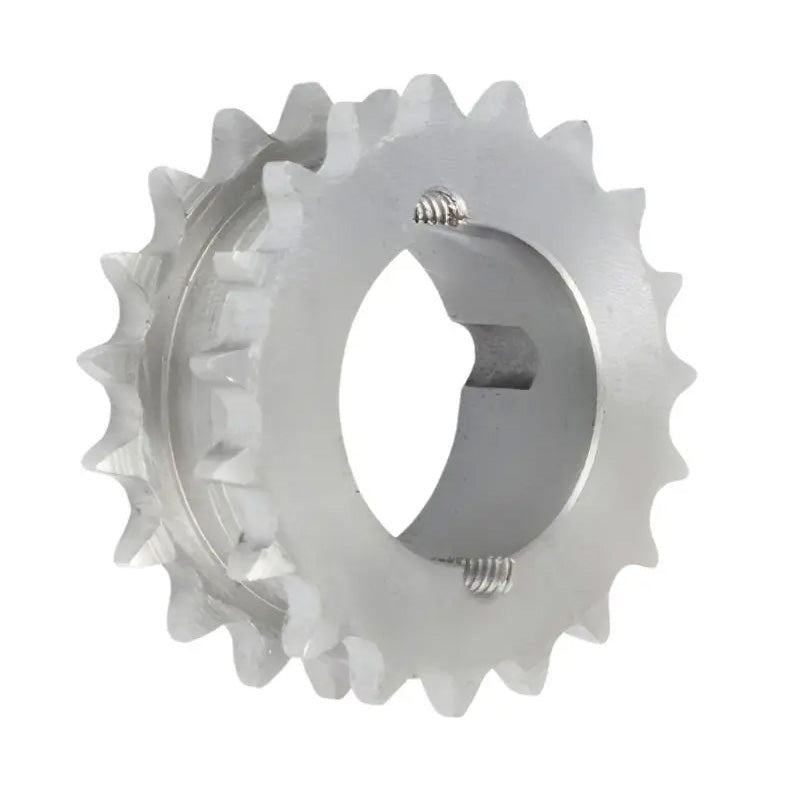

21 Tooth 16B Tapered Bore Double Simplex Sprocket 1 inch Pitch Chain

21 Tooth 16B Tapered Bore Double Simplex Sprocket 1 inch Pitch Chain
$148.23 ex VAT
$148.23 ex VAT
Sale Sold out

Equivalent to: 671-048 DS16B1-21TB

In stock

Price Break
5+ $99.28
9+ $93.71
19+ $92.59
29+ $91.48
49+ $90.36
74+ $89.24
99+ $83.67
199+ $82.55
249+ $81.44
499+ $80.32
999+ $78.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
21
Pitch:
25.4mm = 1 inch
Item Type:
BS European Standard

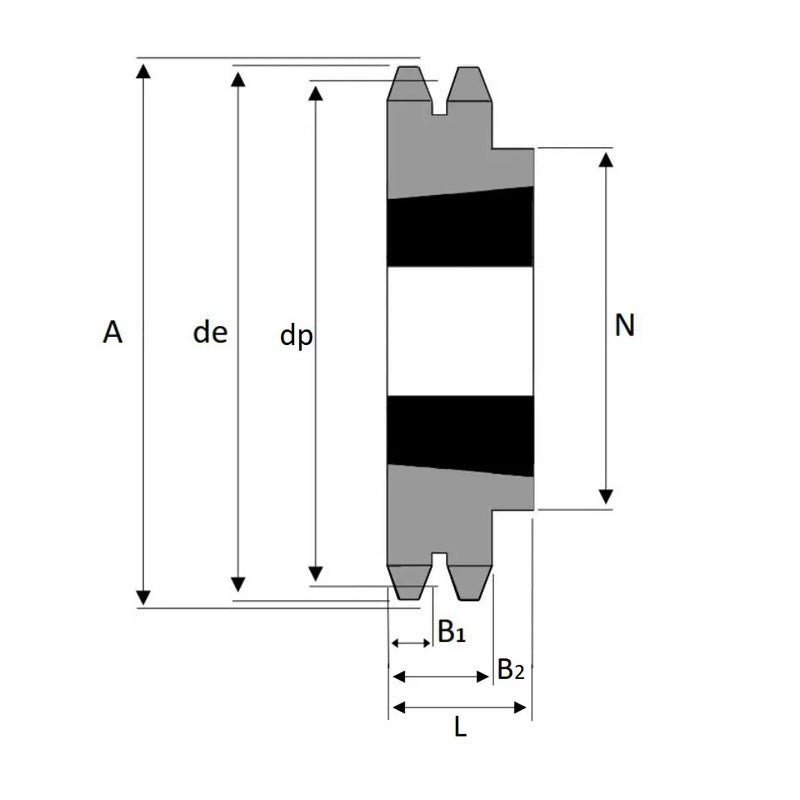

Technical
No. of Teeth 21
Pitch Diameter dp 170.43mm
Outer Diameter de 181.2mm
Width B 63.5mm
Hub Diameter N 145mm
Chamfer C 2.5mm
Tooth Radius r3 26mm
Tooth Width b1 16.2mm
Taper Bush Series <a href="advanced_search_result.php?&keywords=3020+taperlock">3020<span style="color:blue"> Click Here</span></a>
Weight 4.235 kg
