SKU: TBS-S-10B-17
17 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
- Regular price
- $23.18 ex VAT
- Sale price
- $23.18
- Regular price
-
In stock
Quantity Price Breaks
5
$20.63
9
$19.47
19
$19.24
29
$19.01
49
$18.78
74
$18.54
99
$17.39
199
$17.15
249
$16.92
499
$16.69
999
$16.23
SKU:
TBS-S-10B-17
17 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
- Regular price
- $23.18 ex VAT
- Sale price
- $23.18
- Regular price
-
Description

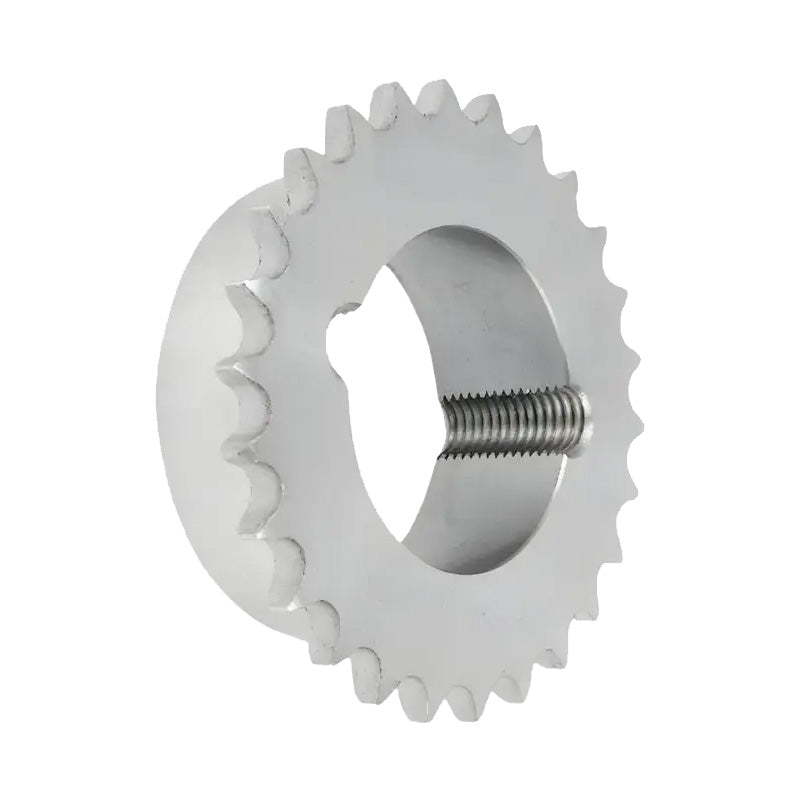

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

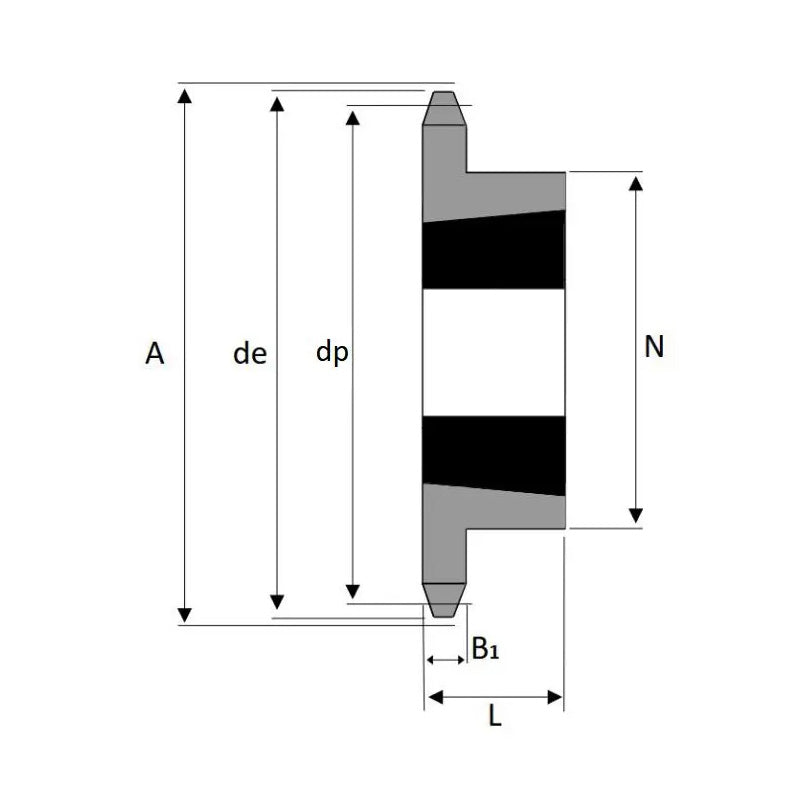

Technical
| Tooth Radius r3 | = | 16mm |
| Chamfer c | = | 1.6mm |
| Tooth Width b1 | = | 9mm |
| Tooth Width B1 | = | 9.1mm |
| Tooth Width B2 | = | 25.5mm |
| Tooth Width B3 | = | 42.1mm |
| Pitch | = | 15.875mm |
| Width Between Inner | = | 9.65mm |
| Roller Diameter | = | 10.16mm |
| No. of Teeth | = | 17 |
| Outer Diameter de | = | 93mm |
| Pitch Diameter dp | = | 86.36mm |
| Hub Diameter dm | = | 71*mm |
| Length Through Bore A | = | 25mm |
| Reference | = | 51-17 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1610+tapered+locking+bush> | = | 1610 Click Here< |
| /a> | = |
