SKU: TBS-S-10B-30

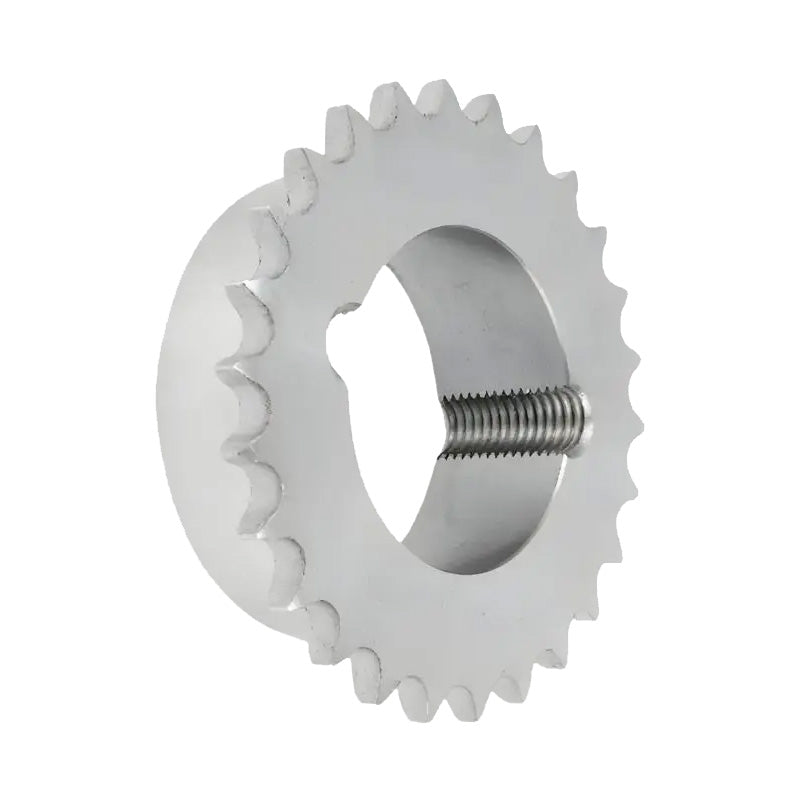

30 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
- Regular price
- $48.40 ex VAT
- Sale price
- $48.40
- Regular price
-
In stock
Quantity Price Breaks
5
$43.08
9
$40.66
19
$40.17
29
$39.69
49
$39.20
74
$38.72
99
$36.30
199
$35.82
249
$35.33
499
$34.85
999
$33.88
SKU:
TBS-S-10B-30
30 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
- Regular price
- $48.40 ex VAT
- Sale price
- $48.40
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

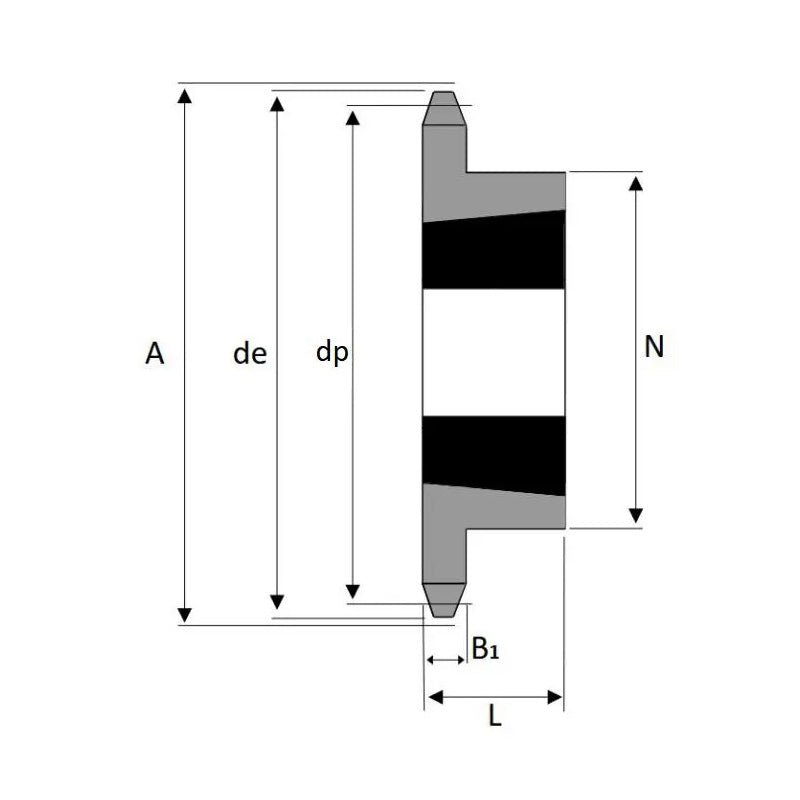

Technical
| Tooth Radius r3 | = | 16mm |
| Chamfer c | = | 1.6mm |
| Tooth Width b1 | = | 9mm |
| Tooth Width B1 | = | 9.1mm |
| Tooth Width B2 | = | 25.5mm |
| Tooth Width B3 | = | 42.1mm |
| Pitch | = | 15.875mm |
| Width Between Inner | = | 9.65mm |
| Roller Diameter | = | 10.16mm |
| No. of Teeth | = | 30 |
| Outer Diameter de | = | 158.8mm |
| Pitch Diameter dp | = | 151.87mm |
| Hub Diameter dm | = | 90mm |
| Length Through Bore A | = | 32mm |
| Reference | = | 51-30 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2012+tapered+locking+bush> | = | 2012 Click Here< |
| /a> | = |
