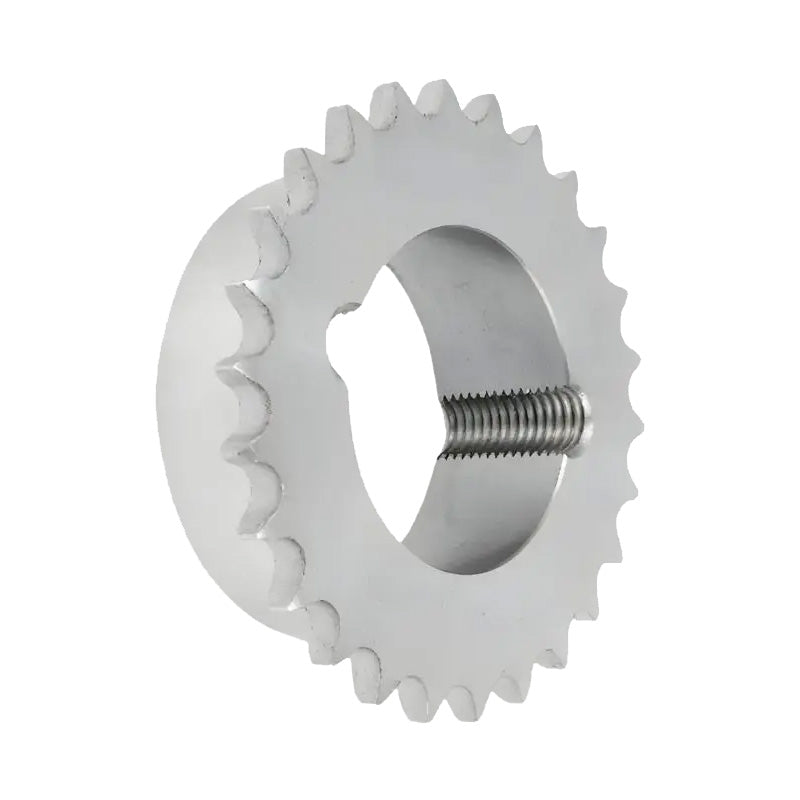

• 38 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
  • 38 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
1 2

SKU: TBS-S-10B-38

38 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

38 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
$51.81 ex VAT
$51.81 ex VAT
Sale Sold out

Equivalent to: TS51-38 10B1 TS51-38 51-38

In stock

Price Break
5+ $34.70
9+ $32.75
19+ $32.36
29+ $31.97
49+ $31.58
74+ $31.19
99+ $29.24
199+ $28.85
249+ $28.46
499+ $28.07
999+ $27.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
38
Pitch:
15.88mm = 0.625 (5/8) inch
Item Type:
BS European Standard

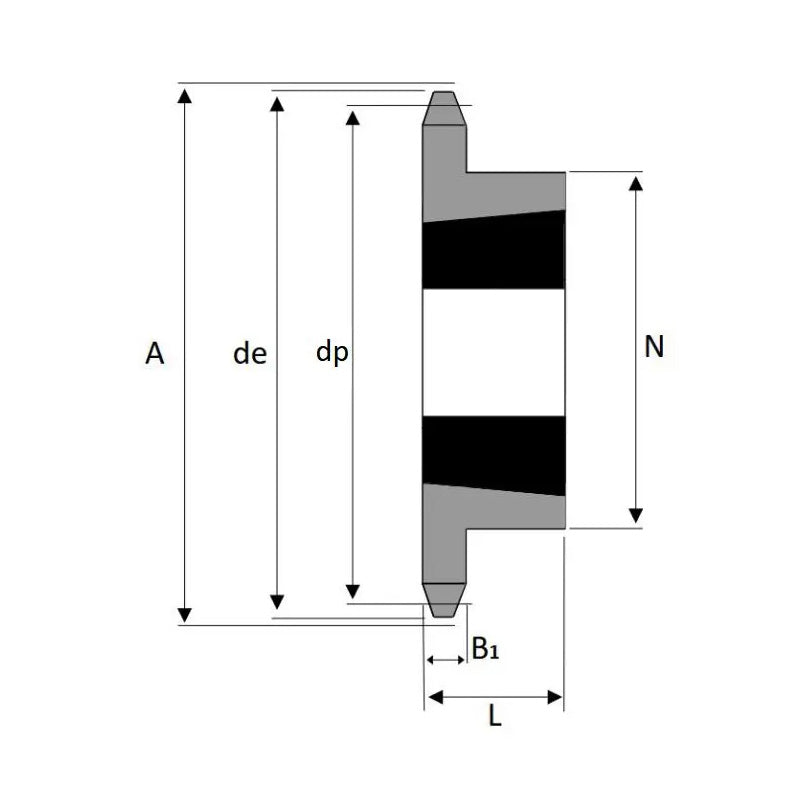

Technical
Tooth Radius r3 16mm
Chamfer c 1.6mm
Tooth Width b1 9mm
Tooth Width B1 9.1mm
Tooth Width B2 25.5mm
Tooth Width B3 42.1mm
Pitch 15.875mm
Width Between Inner 9.65mm
Roller Diameter 10.16mm
No. of Teeth 38
Outer Diameter de 199.2mm
Pitch Diameter dp 192.24mm
Hub Diameter dm 100mm
Length Through Bore A 32mm
Reference 51-38
Taper Bush <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush>2012 Click Here</a>
