• 30 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
  • 30 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
1 2

SKU: TBS-S-16B-30

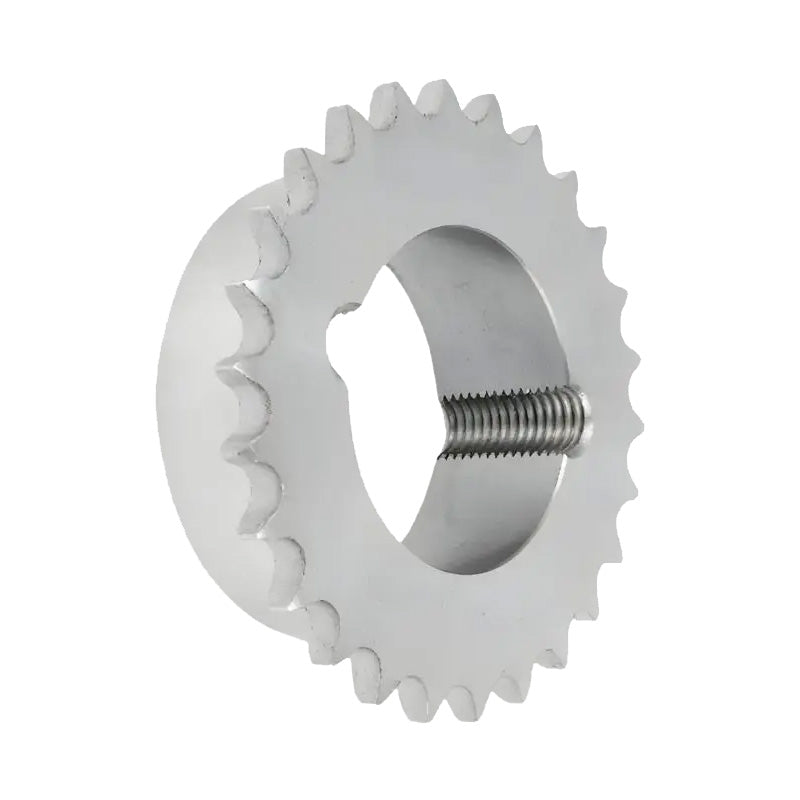

30 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.

30 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
$135.87 ex VAT
$135.87 ex VAT
Sale Sold out

Equivalent to: 16B1 TS81-30 81-30

In stock

Price Break
5+ $91.01
9+ $85.90
19+ $84.87
29+ $83.85
49+ $82.83
74+ $81.81
99+ $76.69
199+ $75.67
249+ $74.65
499+ $73.62
999+ $71.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
30
Pitch:
25.4mm = 1 inch
Item Type:
BS European Standard

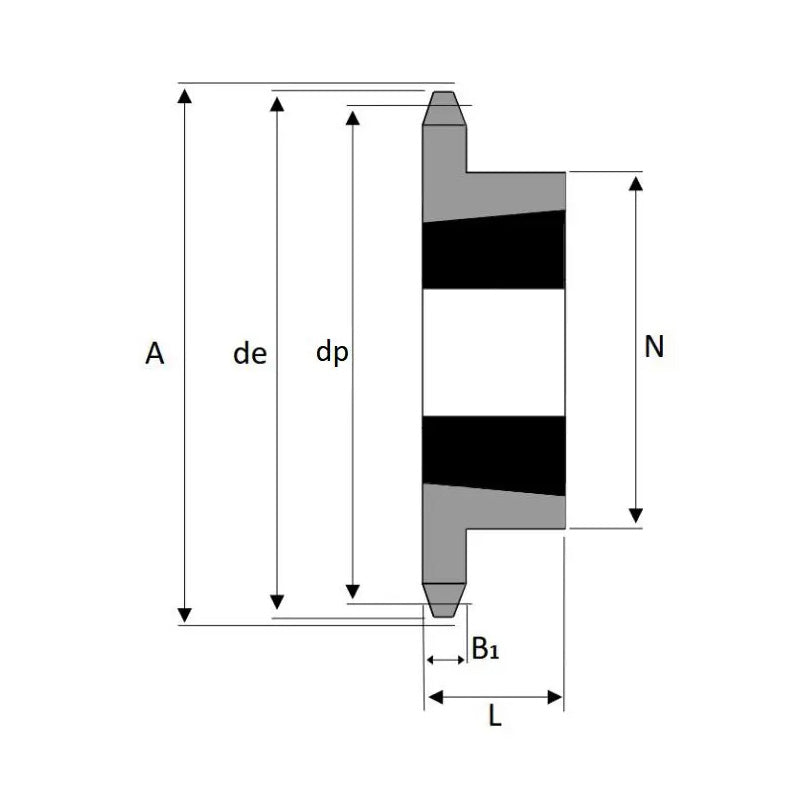

Technical
Tooth Radius r3 26mm
Chamfer c 2.5mm
Tooth Width b1 15.8mm
Tooth Width B1 16.2mm
Tooth Width B2 47.7mm
Tooth Width B3 79.6mm
Pitch 25.4mm
Width Between Inner 17.02mm
Roller Diameter 15.88mm
No. of Teeth 30
Outer Diameter de 254mm
Pitch Diameter dp 243mm
Hub Diameter dm 140mm
Length Through Bore A 51mm
Reference 81-30
Taper Bush <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush>3020 Click Here</a>
