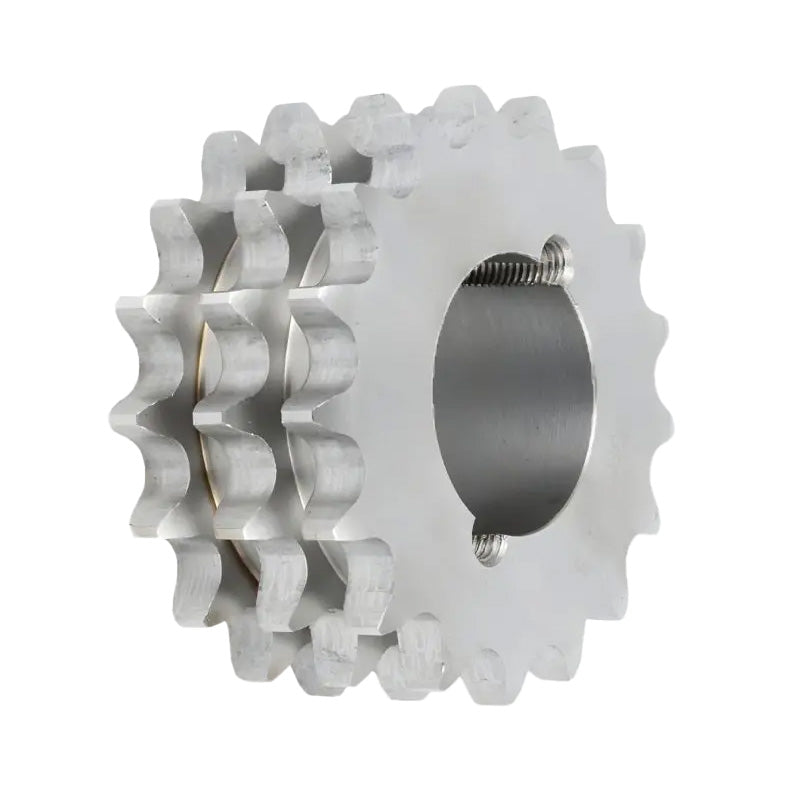

19 Tooth 06B Triplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

SKU: TBS-T-06B-19

19 Tooth 06B Triplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

$23.65 ex VAT
$23.65
ex VAT
Equivalent to: TS33-19 06B3 TS31-19 33-19
In stock

Quantity Price Breaks

5 $21.05
9 $19.87
19 $19.63
29 $19.39
49 $19.16
74 $18.92
99 $17.74
199 $17.50
249 $17.26
499 $17.03
999 $16.56
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
19 Tooth 06B Triplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
SKU: TBS-T-06B-19

19 Tooth 06B Triplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

$23.65 ex VAT
$23.65
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

Technical

Tooth Radius r3 = 10mm
Chamfer c = 1mm
Tooth Width b1 = 5.2mm
Tooth Width B1 = 5.3mm
Tooth Width B2 = 15.4mm
Tooth Width B3 = 25.6mm
Pitch = 9.525mm
Width Between Inner = 5.72mm
Roller Diameter = 6.35mm
No. of Teeth = 19
Outer Diameter de = 61.3mm
Pitch Diameter dp = 57.87mm
Length Through Bore A = 25.6mm
Reference = 33-19
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=1008+tapered+locking+bush> = 1008 Click Here<
/a> =
