• 23 Tooth 06B Triplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
1 1

SKU: TBS-T-06B-23

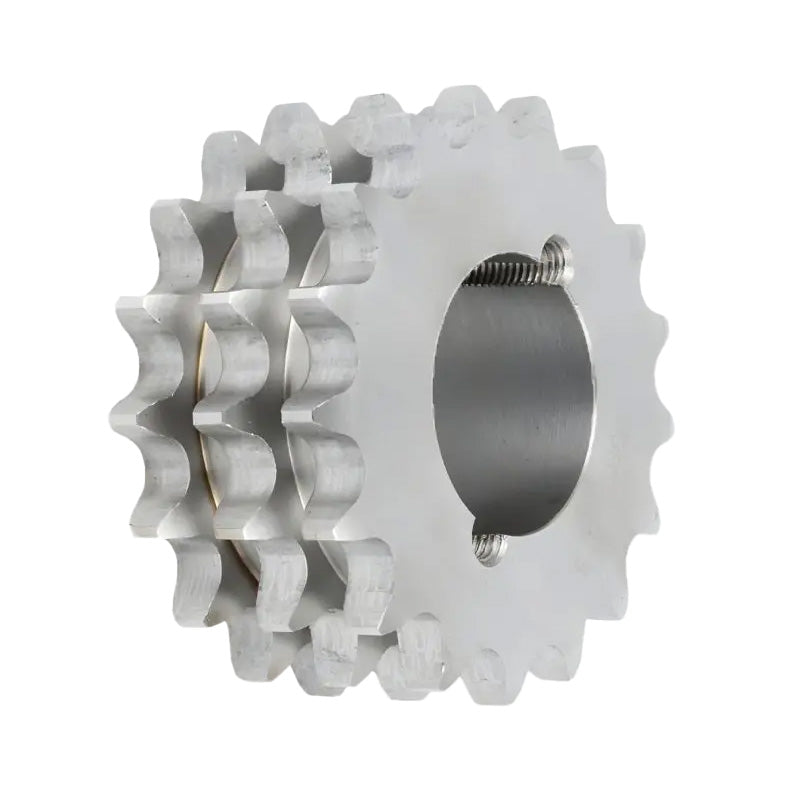

23 Tooth 06B Triplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

23 Tooth 06B Triplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
$17.31 ex VAT
$17.31 ex VAT
Sale Sold out

Equivalent to: TS33-23 06B3 TS31-23 33-23

In stock

Price Break
5+ $11.60
9+ $10.95
19+ $10.82
29+ $10.69
49+ $10.56
74+ $10.43
99+ $9.78
199+ $9.65
249+ $9.52
499+ $9.39
999+ $9.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
23
Pitch:
9.53mm = 0.375 (3/8) inch
Item Type:
BS European Standard
Technical
Tooth Radius r3 10mm
Chamfer c 1mm
Tooth Width b1 5.2mm
Tooth Width B1 5.3mm
Tooth Width B2 15.4mm
Tooth Width B3 25.6mm
Pitch 9.525mm
Width Between Inner 5.72mm
Roller Diameter 6.35mm
No. of Teeth 23
Outer Diameter de 73.5mm
Pitch Diameter dp 69.95mm
Length Through Bore A 25.6mm
Reference 33-23
Taper Bush <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1210+tapered+locking+bush>1210 Click Here</a>
