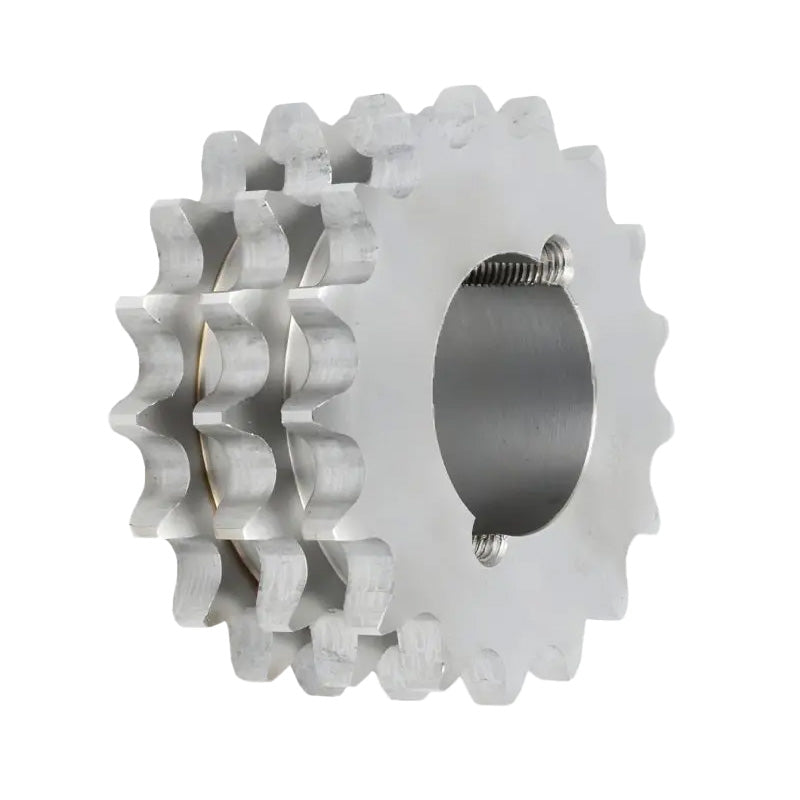

• 27 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
1 1

SKU: TBS-T-08B-27

27 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

27 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
$41.24 ex VAT
$41.24 ex VAT
Sale Sold out

Equivalent to: TS43-27 08B3 TS41-27 41-27

In stock

Price Break
5+ $27.62
9+ $26.07
19+ $25.76
29+ $25.45
49+ $25.14
74+ $24.83
99+ $23.28
199+ $22.97
249+ $22.66
499+ $22.35
999+ $21.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
27
Pitch:
12.7mm = 0.5 (1/2) inch
Item Type:
BS European Standard
Technical
Tooth Radius r3 13mm
Chamfer c 1.3mm
Tooth Width b1 7mm
Tooth Width B1 7.2mm
Tooth Width B2 21mm
Tooth Width B3 34.9mm
Pitch 12.7mm
Width Between Inner 7.75mm
Roller Diameter 8.51mm
No. of Teeth 27
Outer Diameter de 114mm
Pitch Diameter dp 109.4mm
Length Through Bore A 34.9mm
Reference 43-27
Taper Bush <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush>2012 Click Here</a>
