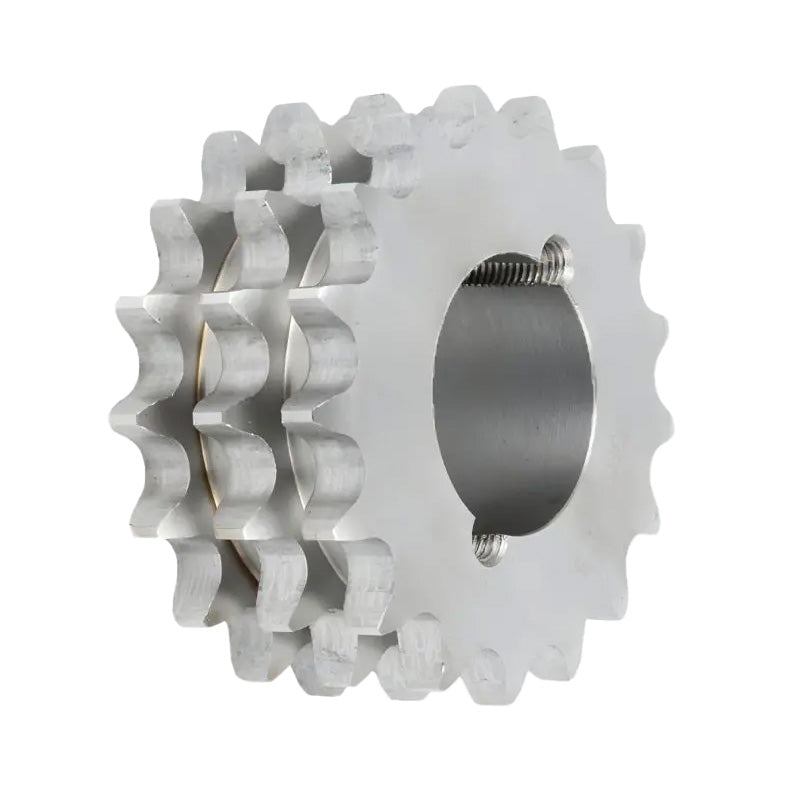

38 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

SKU: TBS-T-08B-38

38 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

$65.12 ex VAT
$65.12
ex VAT
Equivalent to: TS43-38 08B3 TS41-38 41-38
Not in stock

Quantity Price Breaks

5 $57.96
9 $54.70
19 $54.05
29 $53.40
49 $52.75
74 $52.10
99 $48.84
199 $48.19
249 $47.54
499 $46.89
999 $45.58
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
38 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
SKU: TBS-T-08B-38

38 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

$65.12 ex VAT
$65.12
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

Technical

Tooth Radius r3 = 13mm
Chamfer c = 1.3mm
Tooth Width b1 = 7mm
Tooth Width B1 = 7.2mm
Tooth Width B2 = 21mm
Tooth Width B3 = 34.9mm
Pitch = 12.7mm
Width Between Inner = 7.75mm
Roller Diameter = 8.51mm
No. of Teeth = 38
Outer Diameter de = 158.6mm
Pitch Diameter dp = 153.8mm
Length Through Bore A = 34.9mm
Reference = 43-38
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=2012+tapered+locking+bush> = 2012 Click Here<
/a> =
