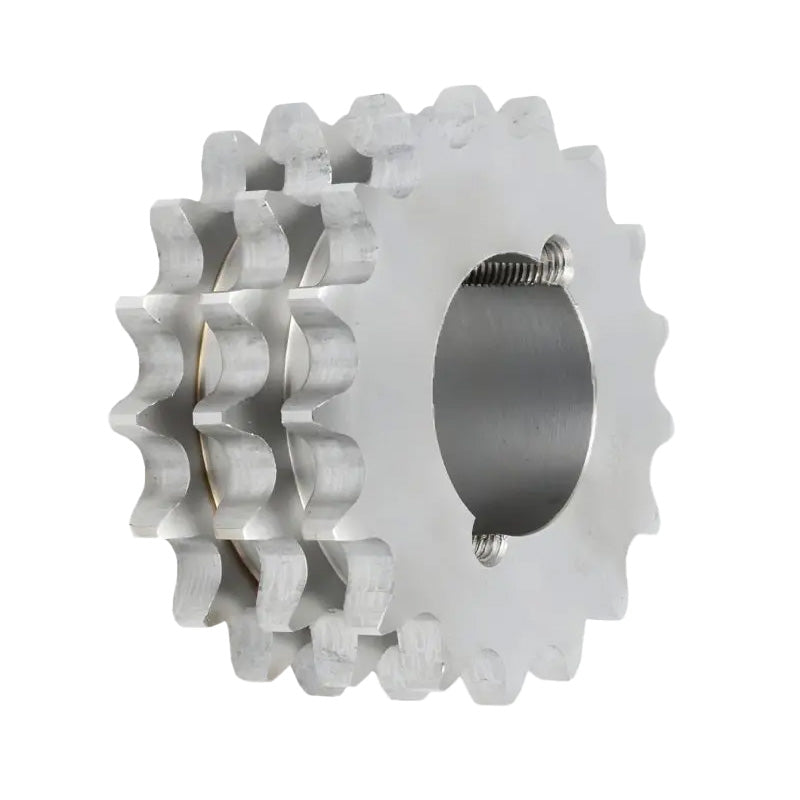

• 23 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
1 1

SKU: TBS-T-10B-23

23 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

23 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
$47.82 ex VAT
$47.82 ex VAT
Sale Sold out

Equivalent to: TS53-23 10B3 TS51-23 51-23

In stock

Price Break
5+ $32.03
9+ $30.23
19+ $29.87
29+ $29.51
49+ $29.15
74+ $28.79
99+ $26.99
199+ $26.63
249+ $26.27
499+ $25.91
999+ $25.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
23
Pitch:
15.88mm = 0.625 (5/8) inch
Item Type:
BS European Standard
Technical
Tooth Radius r3 16mm
Chamfer c 1.6mm
Tooth Width b1 9mm
Tooth Width B1 9.1mm
Tooth Width B2 25.5mm
Tooth Width B3 42.1mm
Pitch 15.875mm
Width Between Inner 9.65mm
Roller Diameter 10.16mm
No. of Teeth 23
Outer Diameter de 123.4mm
Pitch Diameter dp 116.58mm
Length Through Bore A 42.1mm
Reference 53-23
Taper Bush <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush>2012 Click Here</a>
