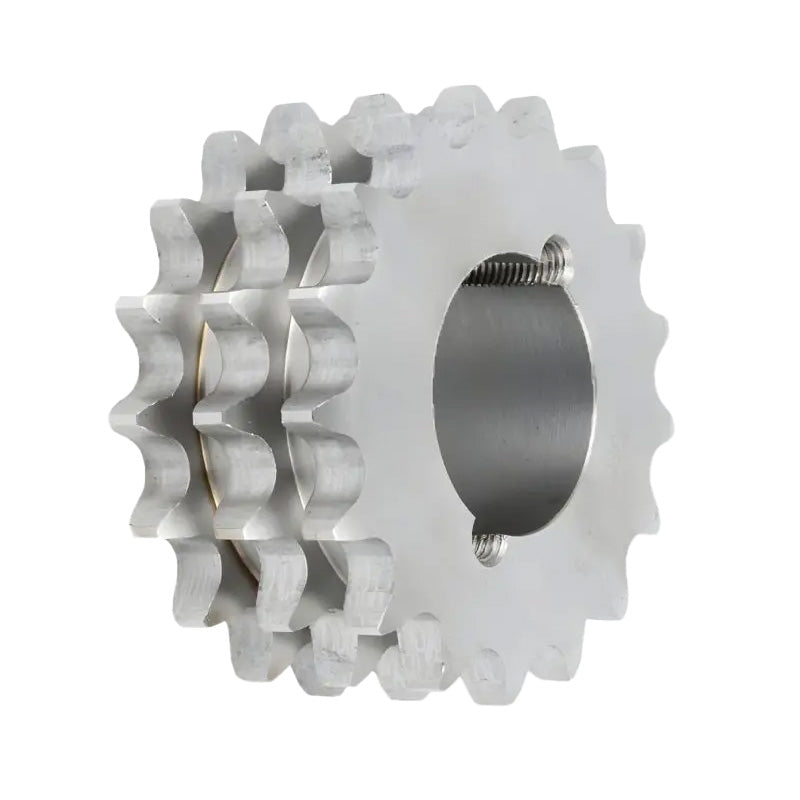

27 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

SKU: TBS-T-10B-27

27 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

$65.12 ex VAT
$65.12
ex VAT
Equivalent to: TS53-27 10B3 TS51-27 51-27
In stock

Quantity Price Breaks

5 $57.96
9 $54.70
19 $54.05
29 $53.40
49 $52.75
74 $52.10
99 $48.84
199 $48.19
249 $47.54
499 $46.89
999 $45.58
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
27 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
SKU: TBS-T-10B-27

27 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

$65.12 ex VAT
$65.12
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

Technical

Tooth Radius r3 = 16mm
Chamfer c = 1.6mm
Tooth Width b1 = 9mm
Tooth Width B1 = 9.1mm
Tooth Width B2 = 25.5mm
Tooth Width B3 = 42.1mm
Pitch = 15.875mm
Width Between Inner = 9.65mm
Roller Diameter = 10.16mm
No. of Teeth = 27
Outer Diameter de = 144mm
Pitch Diameter dp = 136.75mm
Hub Diameter dm = 110mm
Length Through Bore A = 45mm
Reference = 53-27
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=2517+tapered+locking+bush> = 2517 Click Here<
/a> =
