SKU: TBS-T-12B-25

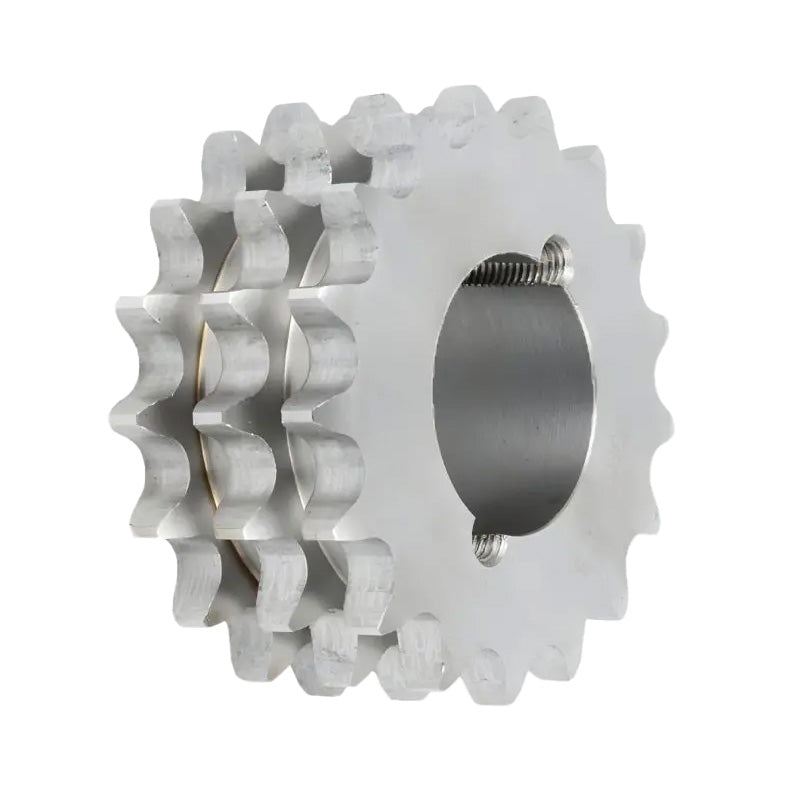

25 Tooth 12B Triplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- $94.37 ex VAT
- Sale price
- $94.37
- Regular price
-
Not in stock
Quantity Price Breaks
5
$83.99
9
$79.27
19
$78.33
29
$77.38
49
$76.44
74
$75.50
99
$70.78
199
$69.83
249
$68.89
499
$67.95
999
$66.06
SKU:
TBS-T-12B-25
25 Tooth 12B Triplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- $94.37 ex VAT
- Sale price
- $94.37
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 25 |
| Pitch Diameter dp | = | 151.99mm |
| Outer Diameter de | = | 160mm |
| Diameter Over Chain A | = | 168mm |
| Hub Diameter N | = | mm |
| Tooth Width B3 | = | 49.8mm |
| Bore Length L | = | 49.8mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=2517+taperlock" | = | > |
| 2517< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 5.439 kg | = | N/A |
