SKU: TBS-T-12B-30

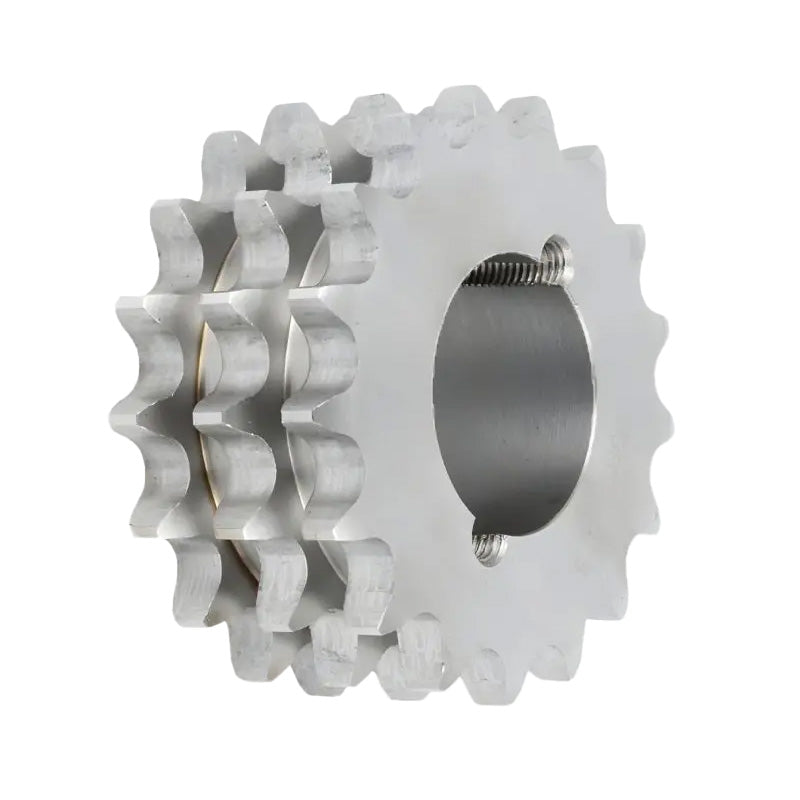

30 Tooth 12B Triplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- $123.09 ex VAT
- Sale price
- $123.09
- Regular price
-
Not in stock
Quantity Price Breaks
5
$109.55
9
$103.40
19
$102.16
29
$100.93
49
$99.70
74
$98.47
99
$92.32
199
$91.09
249
$89.86
499
$88.62
999
$86.16
SKU:
TBS-T-12B-30
30 Tooth 12B Triplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- $123.09 ex VAT
- Sale price
- $123.09
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 30 |
| Pitch Diameter dp | = | 182.25mm |
| Outer Diameter de | = | 191mm |
| Diameter Over Chain A | = | 197mm |
| Hub Diameter N | = | 140mm |
| Tooth Width B3 | = | 49.8mm |
| Bore Length L | = | 50.8mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=3020+taperlock" | = | > |
| 3020< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 7.413 kg | = | N/A |
