SKU: TBS-T-12B-76

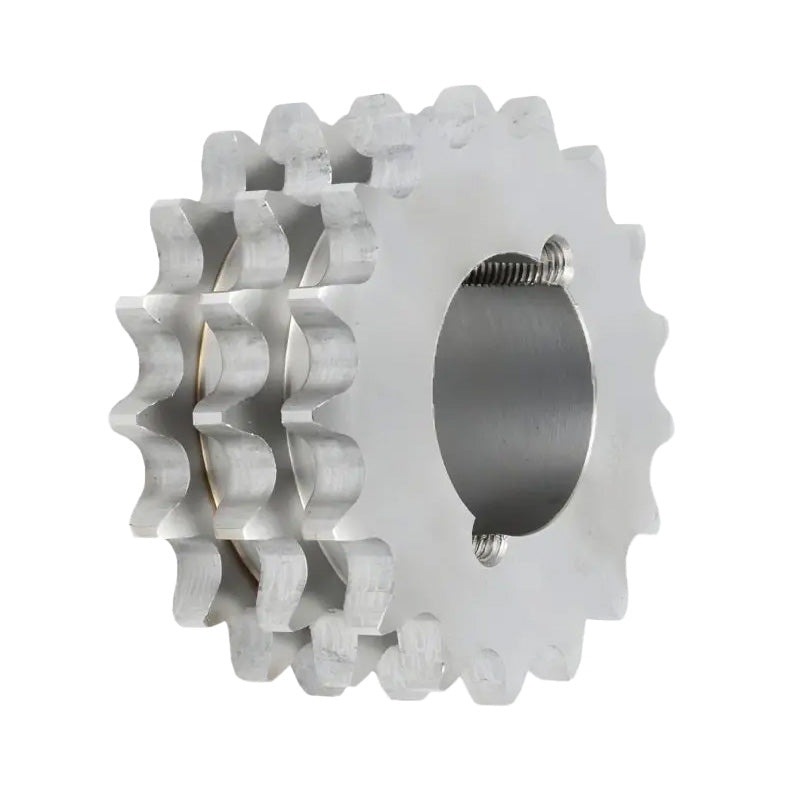

76 Tooth 12B Triplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- $567.36 ex VAT
- Sale price
- $567.36
- Regular price
-
Not in stock
Quantity Price Breaks
5
$504.95
9
$476.58
19
$470.91
29
$465.24
49
$459.56
74
$453.89
99
$425.52
199
$419.85
249
$414.17
499
$408.50
999
$397.15
SKU:
TBS-T-12B-76
76 Tooth 12B Triplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- $567.36 ex VAT
- Sale price
- $567.36
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical

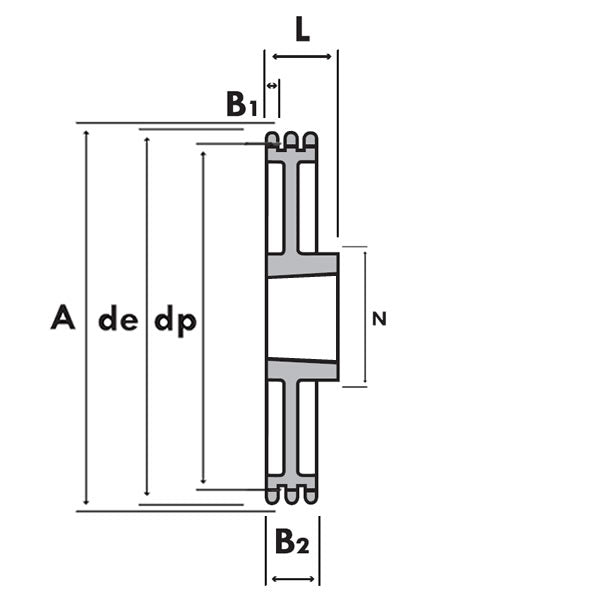

| No. of Teeth | = | 76 |
| Pitch Diameter dp | = | 460.98mm |
| Outer Diameter de | = | 470mm |
| Diameter Over Chain A | = | 478mm |
| Hub Diameter N | = | 160mm |
| Tooth Width B3 | = | 49.8mm |
| Bore Length L | = | 50.8mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=3020+taperlock" | = | > |
| 3020< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 45.787 kg | = | N/A |
