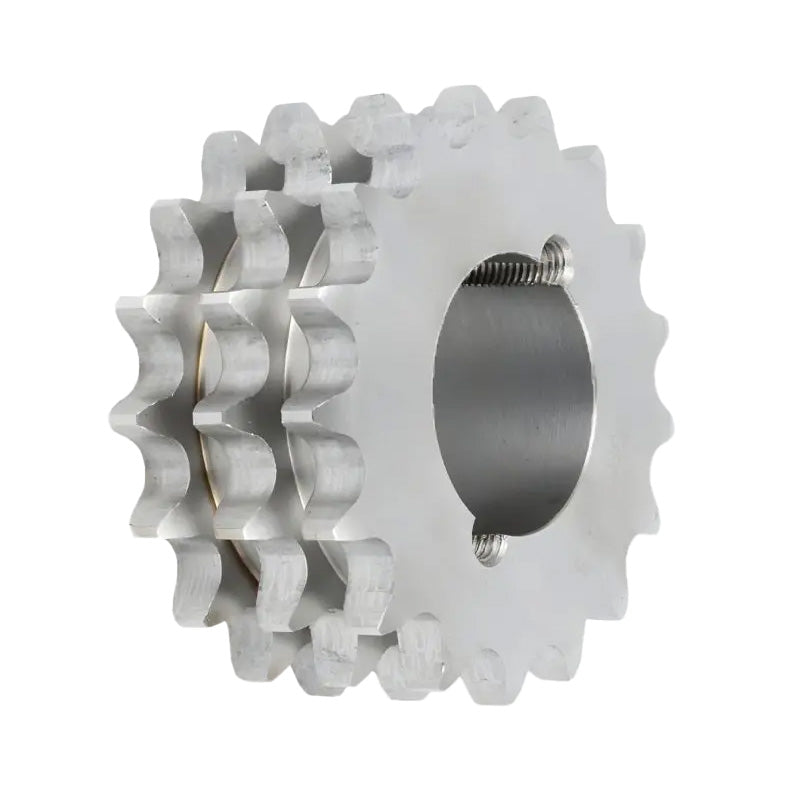

21 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

SKU: TBS-T-16B-21

21 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

$154.25 ex VAT
$154.25
ex VAT
Equivalent to: 16B3 TS83-21 83-21
Not in stock

Quantity Price Breaks

5 $137.28
9 $129.57
19 $128.03
29 $126.49
49 $124.94
74 $123.40
99 $115.69
199 $114.15
249 $112.60
499 $111.06
999 $107.98
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
21 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
SKU: TBS-T-16B-21

21 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

$154.25 ex VAT
$154.25
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

Technical

Tooth Radius r3 = 26mm
Chamfer c = 2.5mm
Tooth Width b1 = 15.8mm
Tooth Width B1 = 16.2mm
Tooth Width B2 = 47.7mm
Tooth Width B3 = 79.6mm
Pitch = 25.4mm
Width Between Inner = 17.02mm
Roller Diameter = 15.88mm
No. of Teeth = 21
Outer Diameter de = 181.2mm
Pitch Diameter dp = 170.43mm
Length Through Bore A = 79.6mm
Reference = 83-21
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=3030+tapered+locking+bush> = 3030 Click Here<
/a> =
