• INA TCJ40XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 40mm Bore
  • INA
1 2

SKU: TCJ40-XL-N-INA

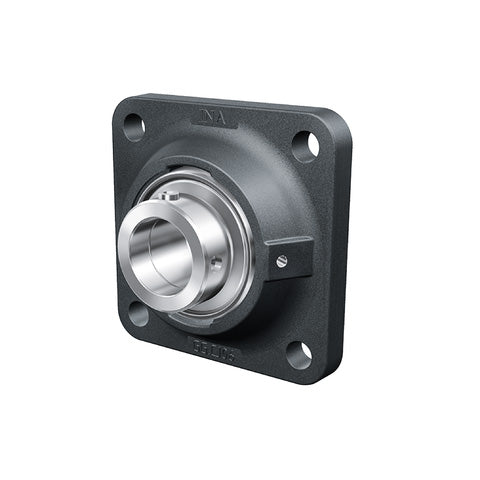

INA TCJ40XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 40mm Bore

INA TCJ40XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 40mm Bore
$127.45 ex VAT
$127.45 ex VAT
Sale Sold out

In stock

Price Break
4+ $85.37
9+ $80.57
19+ $79.61
29+ $78.65
39+ $77.70
49+ $76.74
59+ $71.94
69+ $70.98
79+ $70.02
89+ $69.06
99+ $67.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
40mm
Style:
TCJ
Bolt Hole Centres:
101.5mm
Technical
d 40mm
L 130mm
U 59.1mm
A 34.5mm
A1 13mm
A2 24mm
B1 56.5mm
d3 max 58mm
J 101.5mm
N 14mm
Q M6
V 110mm
Mass 2.02 kg
Basic dynamic load rating Cr 34500 N
Basic static load rating Cor 19800 N
Designation of housing CJ08
Designation of bearing GE40-XL-KTT-BBearing end cap, closed design (to be ordered separately)
KASK08 N/A
