SKU: TEN-ARM-SE18-DUN

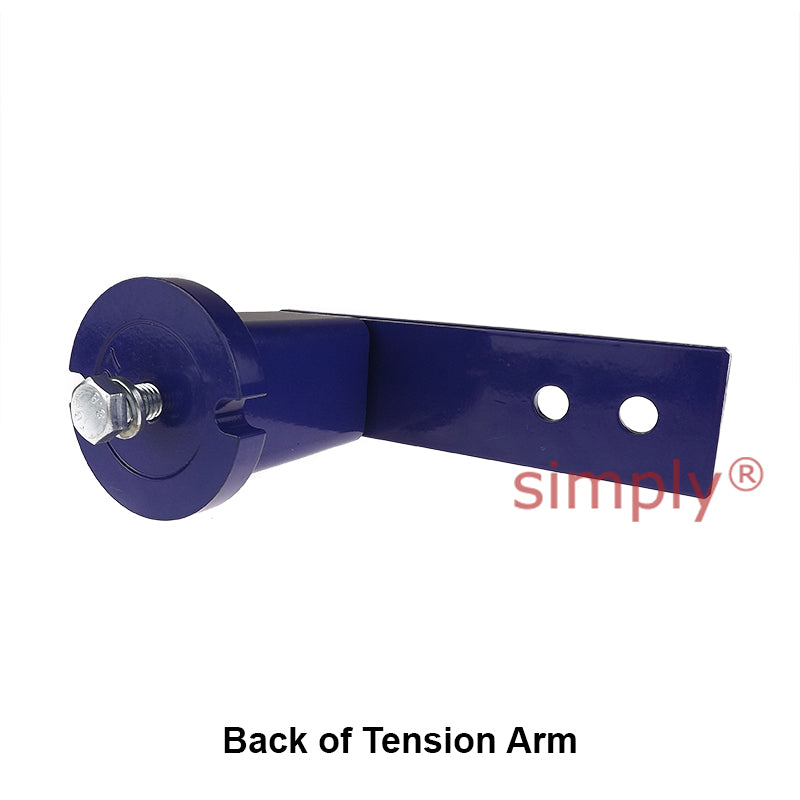

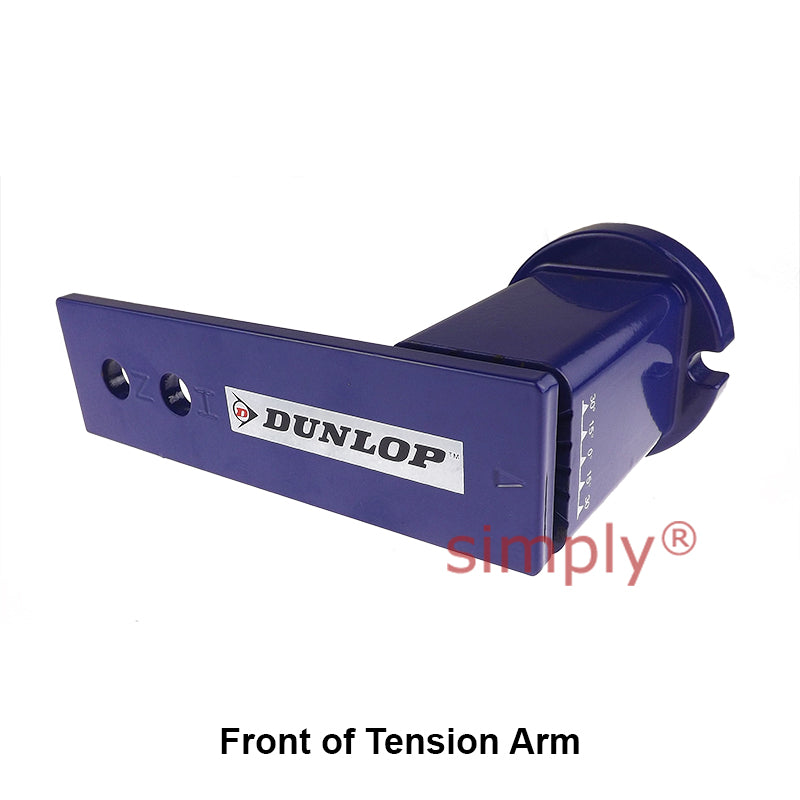

Dunlop SE18 Chain and V-Belt Tension Arm
- Regular price
- $38.51 ex VAT
- Sale price
- $38.51
- Regular price
-
In stock
Quantity Price Breaks
3
$34.27
5
$32.35
9
$31.96
19
$31.58
49
$31.19
74
$30.81
99
$28.88
199
$28.50
249
$28.11
499
$27.73
999
$26.96
SKU:
TEN-ARM-SE18-DUN
Dunlop SE18 Chain and V-Belt Tension Arm
- Regular price
- $38.51 ex VAT
- Sale price
- $38.51
- Regular price
-
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C

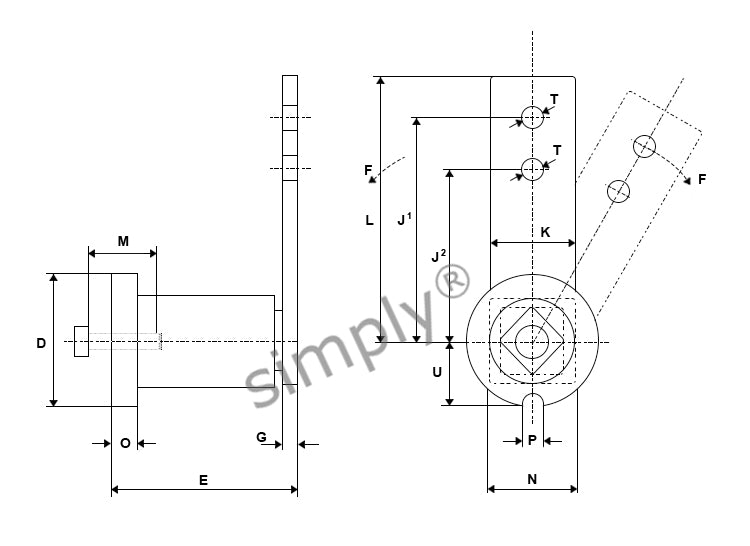

Technical
| Part No. | = | SE18 |
| D | = | 58mm |
| E | = | 79 (+1.5/-0.5)mm |
| G | = | 7mm |
| H | = | M10 |
| J< | = | sup> |
| 1< | = | /sup> |
| = | 100mm | |
| J< | = | sup> |
| 2< | = | /sup> |
| = | 100mm | |
| K | = | 30mm |
| L | = | 115mm |
| M | = | 30mm |
| N | = | 35mm |
| O | = | 10.5mm |
| P | = | 8.5mm |
| T | = | 10.5mm |
| U | = | 25.3mm |
