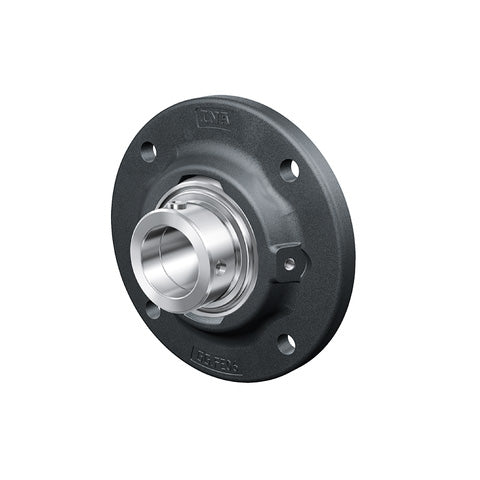

• INA TFE25XL Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 25mm Bore
  • INA
1 2

SKU: TFE25-XL-INA

INA TFE25XL Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 25mm Bore

INA TFE25XL Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 25mm Bore
$72.11 ex VAT
$72.11 ex VAT
Sale Sold out

In stock

Price Break
4+ $48.30
9+ $45.59
19+ $45.04
29+ $44.50
39+ $43.96
49+ $43.42
59+ $40.70
69+ $40.16
79+ $39.62
89+ $39.07
99+ $37.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
TFE
Pitch Circle Diameter:
92mm
Technical
d 25mm
H 115mm
B1 44.5mm
A 22mm
A1 9mm
A2 9.5mm
d3 max 37.5mm
J 92
N 9mm
Q M6
T1 3mm
U 36.4mm
Z 75mm (Tolerance: h8)
Mass 0.8 kg
Basic dynamic load rating Cr 14900 N
Basic static load rating Cor 7800 N
Designation of housing FE05
Designation of bearing GE25-XL-KTT-B
