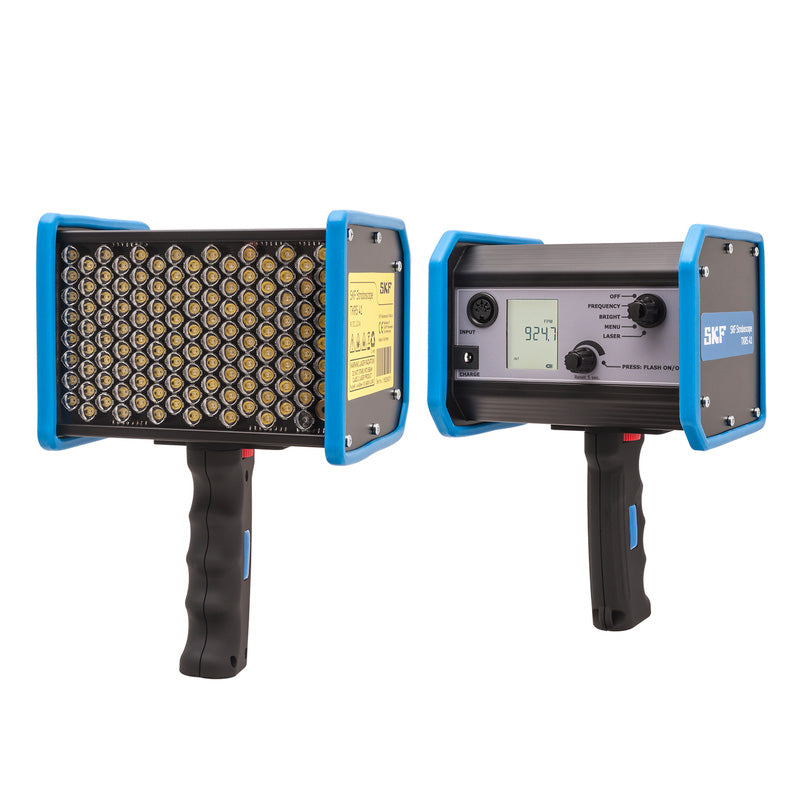

• SKF TKRS41 Stroboscope 30-300000 flashes per minute
1 1

SKU: TKRS41-SKF

SKF TKRS41 Stroboscope 30-300000 flashes per minute

SKF TKRS41 Stroboscope 30-300000 flashes per minute
$4,476.76 ex VAT
$4,476.76 ex VAT
Sale Sold out

In stock

Price Break
10+ $2,998.67
19+ $2,830.21
29+ $2,796.51
39+ $2,762.82
49+ $2,729.13
74+ $2,695.43
99+ $2,526.97
199+ $2,493.28
249+ $2,459.58
499+ $2,425.89
999+ $2,358.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

SKF TKRS Series: The SKF Stroboscopes are portable, compact, easy-to-use stroboscopes that enable the motion of rotating or reciprocating machinery to appear frozen. They allow such applications as fan blades, couplings, gear wheels, machine tool spindles and belt drives to be inspected while running. TKRS stroboscopes are useful for ODR programmes and are an essential instrument for maintenance technicians. Phase shift mode enables the viewing of the object of interest to be rotated to the correct position for viewing, especially useful for gear wheels and fan blade inspection. For ease of use for extended periods, they are equipped with a tripod mounting thread.
Note:Ergonomic controls enable the flash rate to be set in a matter of seconds. Supplied in a sturdy carrying case with universal charger

Brand / Quality:
SKF - High Quality
Technical
Flash rate range 30 to 300000 flashes per minute (f/min)
Flash rate accuracy +/-0,02% (+/-1 digit / +/-0,025us)
Flash setting and display resolution +/-0,1 (30 to 999.9 f/min) <br> +/-1,0 (1 000 to 9 999 f/min)<br> +/-10 (10 000 to 300 000 f/min)
Tachometer range 30 to 300000 r/min
Tachometer accuracy +0,02% or +1 digit whichever is greater
Flash source 118 LEDs
Flash duration adjustable: 0,025 deg - 3,0 deg
Light power 8000 lux at 1 deg flash duration and 0,3 m (12 in) distance
Flash colour approx. 5000 - 8000 K
Power Source Li-ion battery (rechargeable) Continuous operation with power supply
Run time ca. per change ca. 2:30 h at 0,50 deg (~4 000 lux) ca. 5:00 h at 0,25 deg (~2 000 lux)
Charge and power supply 110-230V, 50/60Hz, EU/US/UK/AUS plugs
Display Multi-line backlight LCD
Controls Mode selector switch and rotary/push knob
External tirgger input 3-30 V / max. 5 mA (isolated optocoupler)<br>DIN 41524 5-pin standard connector<br>Uout = 24 VDC, 60 mA
External trigger range 0 to 300,000 f/min
Housing Material Alluminium
Instrument dimensions 150 x 130 x 112mm ( 6.0 x 5.1 x 4.4 inch)
Case dimensions 345 x 165 x 270mm (13.6 x 6.5 x 10.6 inch)
Unit weight 1,15 kg (2.53 lb)
Total weight 2,4 kg (5.3 lb)
Operating temperature 0 to 40 deg C (32 to 104 F)
Type of protection for indication only IP30
