• SKF TKSU10 Ultrasonic Leak Detector
  • SKF TKSU10 Ultrasonic Leak Detector
1 2

SKU: TKSU10-SKF

SKF TKSU10 Ultrasonic Leak Detector

SKF TKSU10 Ultrasonic Leak Detector
$2,105.61 ex VAT
$2,105.61 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,410.40
19+ $1,331.16
29+ $1,315.32
39+ $1,299.47
49+ $1,283.62
74+ $1,267.78
99+ $1,188.54
199+ $1,172.69
249+ $1,156.85
499+ $1,141.00
999+ $1,109.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

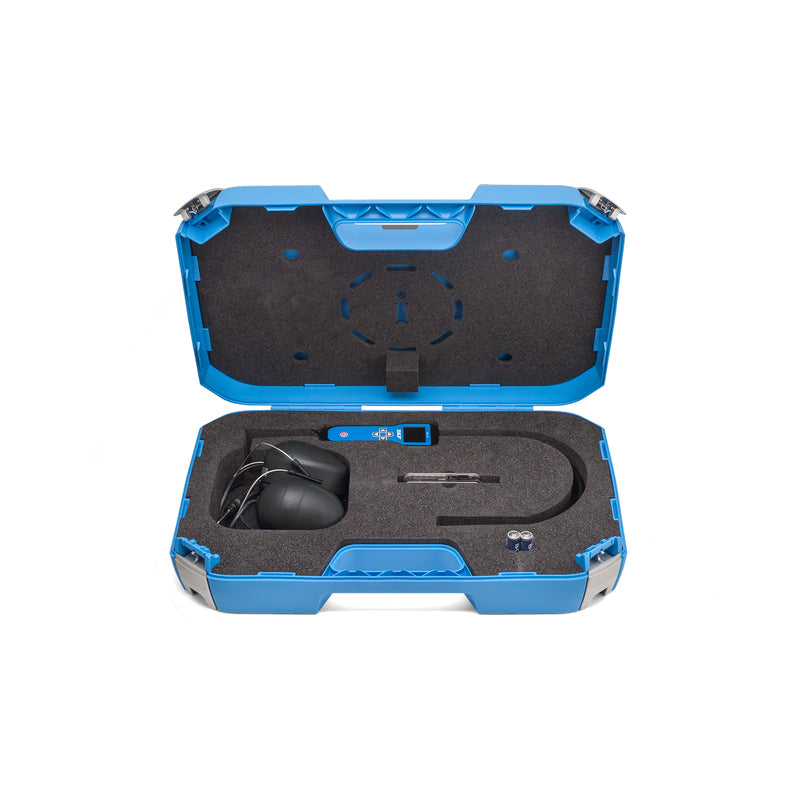

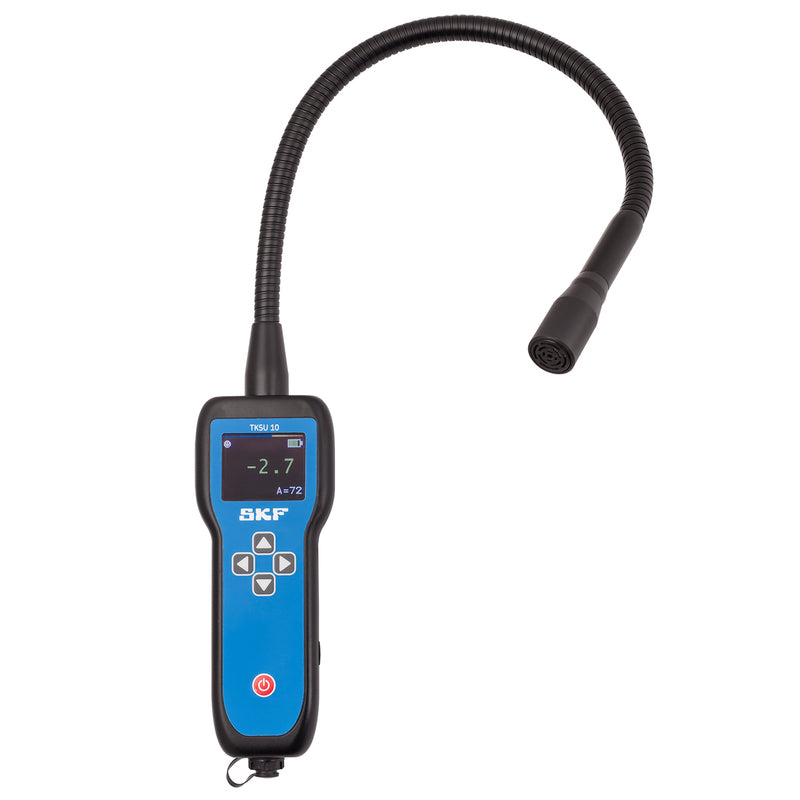

SKF TMSU Series: The SKF TKSU 10 ultrasonic leak detector is a high quality, user friendly, sensitive instrument enabling the detection of air leaks by means of ultrasound. Leaks are caused by fluid flowing from a high pressure environment to a low pressure environment, creating turbulence. The turbulence generates high frequency sounds (so called ultrasound) that can be detected by TKSU 10 air leak detection equipment. The sensitive piezoelectric crystal in the sensor allows the operator to quickly guide the instrument to the loudest point which helps locate the leak location. The SKF TKSU 10 includes an ultrasonic air leak detector, headset, rubber nozzle and batteries, all supplied complete in a sturdy carrying case. Lightweight compact design makes it easy to operate with one hand. By identifying air leaks and fixing them, energy consumption is significantly reduced. Excellent quality headset for optimum sound quality even in very high-noise environments, also act as ear defenders.
Note: Wide operating temperature suitable for diverse industrial environments
Brand / Quality:
SKF - High Quality
Technical
Measurement channel 1 channel via a 7 pole LEMO connector
Display Colour OLED
Keyboard 5 function keys
Measuring Range -6 to 99,9 dBµV (reference 0 dB = 1&microV)
Resolution 0,1 dB&microV
Measurement bandwidth 35 to 42 kHz
Signal amplification +30 to +102 by step of 6 dB
Amplification 5 adjustable positions in steps of 6 dB
Maximum output +83 dB SPL with supplied headset
Headset 25 dB NRR Peltor HQ headset
Headset connector Stereo jack connector of 6,35mm (1/4 in.)
Battery 2 AA batteries
Battery Life 7 hours
Operating temperature -10 to + 50 deg C (14 to 122 F)
IP Rating IP42
Housing Material ABS
Dimensions instrument 158 x 59 x 38,5mm (6.22 x 2.32 x 1.51 in)
Flexible rod length 445mm (17.51 in.)
Weight instrument (incl. batteries) 350g (0.78 lb)
Carrying case dimensions 530x110x360mm (20.9 x 4.3 x 14.2 in.)
Total weight (incl. case) 3kg (6.6lb)
