• TL44-H-150F - 1/2 inch Pitch 44 Tooth Flanged Tapered Bore Steel Timing Pulley for 1-1/2 inch Wide Belts
1 1

SKU: TL44-H-150F

TL44-H-150F - 1/2 inch Pitch 44 Tooth Flanged Tapered Bore Steel Timing Pulley for 1-1/2 inch Wide Belts

TL44-H-150F - 1/2 inch Pitch 44 Tooth Flanged Tapered Bore Steel Timing Pulley for 1-1/2 inch Wide Belts
$77.49 ex VAT
$77.49 ex VAT
Sale Sold out

Equivalent to: TL44H150F

In stock

Price Break
3+ $51.90
5+ $48.99
9+ $48.40
19+ $47.82
49+ $47.24
74+ $46.65
99+ $43.74
199+ $43.15
249+ $42.57
499+ $41.99
999+ $40.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
44
Material:
Steel
Belt Width Approx:
38.1mm = 1.5 (1-1/2) inch
Pitch:
12.7mm = 0.5 (1/2) inch
Item Type:
Flanged Tapered Bore Pulley

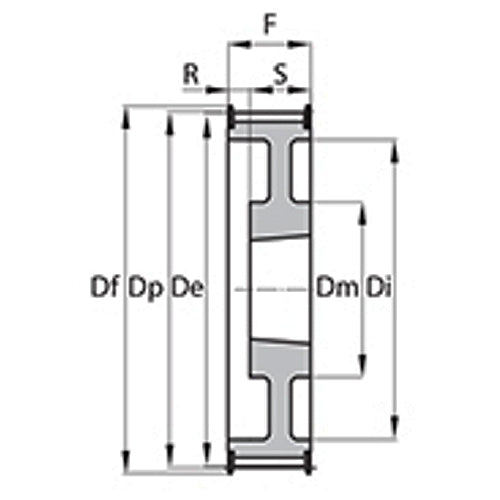

Technical
No. teeth 44
Dp 177.87mm
De 176.5mm
Df 184mm
Dm 106mm
F 45mm
No. flanges 2
Material Steel
Bore Tapered Bore
Belt Width 38.1mm = 1.5 (1-1/2) inch
Pitch 12.7mm = 0.5 (1/2) inch
S 32mm
R 13mm
Di 152mm
Bush 2012
