• TL48-L-075F - 3/8 inch Pitch 48 Tooth Flanged Tapered Bore Steel Timing Pulley for 3/4 inch Wide Belts
1 1

SKU: TL48-L-075F

TL48-L-075F - 3/8 inch Pitch 48 Tooth Flanged Tapered Bore Steel Timing Pulley for 3/4 inch Wide Belts

TL48-L-075F - 3/8 inch Pitch 48 Tooth Flanged Tapered Bore Steel Timing Pulley for 3/4 inch Wide Belts
$47.58 ex VAT
$47.58 ex VAT
Sale Sold out

Equivalent to: TL48L075F

In stock

Price Break
3+ $31.87
5+ $30.08
9+ $29.73
19+ $29.37
49+ $29.01
74+ $28.65
99+ $26.86
199+ $26.50
249+ $26.14
499+ $25.79
999+ $25.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
48
Material:
Steel
Belt Width Approx:
19.05mm = 0.75 (3/4) inch
Pitch:
9.53mm = 0.375 (3/8) inch
Item Type:
Flanged Tapered Bore Pulley

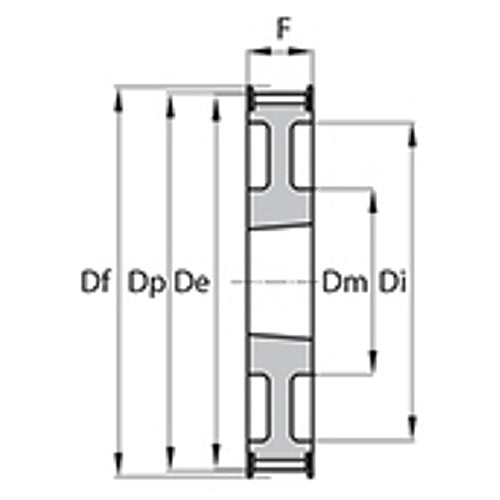

Technical
No. teeth 48
Dp 145.53mm
De 144.77mm
Df 150mm
Dm 92mm
F 25mm
No. flanges 2
Material Steel
Bore Tapered Bore
Belt Width 19.05mm = 0.75 (3/4) inch
Pitch 9.53mm = 0.375 (3/8) inch
Di 120mm
Bush 1610
