• TL72-H-100 - 1/2 inch Pitch 72 Tooth Tapered Bore Cast Iron Timing Pulley for 1 inch Wide Belts
1 1

SKU: TL72-H-100

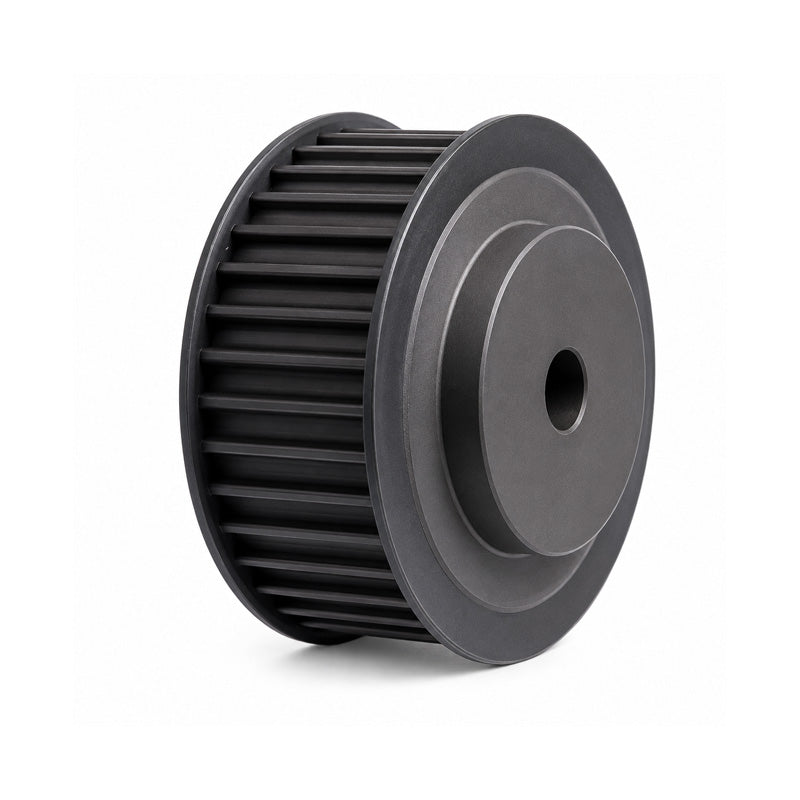

TL72-H-100 - 1/2 inch Pitch 72 Tooth Tapered Bore Cast Iron Timing Pulley for 1 inch Wide Belts

TL72-H-100 - 1/2 inch Pitch 72 Tooth Tapered Bore Cast Iron Timing Pulley for 1 inch Wide Belts
$100.73 ex VAT
$100.73 ex VAT
Sale Sold out

Equivalent to: TL72H100

In stock

Price Break
3+ $67.47
5+ $63.68
9+ $62.92
19+ $62.16
49+ $61.41
74+ $60.65
99+ $56.86
199+ $56.10
249+ $55.34
499+ $54.58
999+ $53.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
72
Material:
Cast Iron
Belt Width Approx:
25.4mm = 1 inch
Pitch:
12.7mm = 0.5 (1/2) inch
Item Type:
Flangeless Tapered Bore Pulley

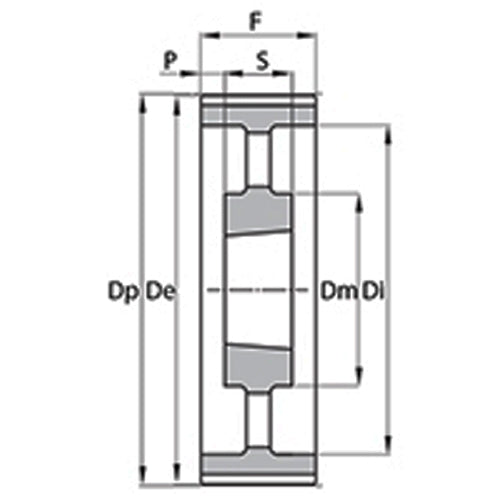

Technical
No. teeth 72
Dp 291.06mm
De 289.69mm
Dm 106mm
F 34mm
Material Cast Iron
Bore Tapered Bore
Belt Width 25.4mm = 1 inch
Pitch 12.7mm = 0.5 (1/2) inch
S 32mm
R 1mm
Di 270mm
Bush 2012
