• TL72-L-100 - 3/8 inch Pitch 72 Tooth Tapered Bore Cast Iron Timing Pulley for 1 inch Wide Belts
1 1

SKU: TL72-L-100

TL72-L-100 - 3/8 inch Pitch 72 Tooth Tapered Bore Cast Iron Timing Pulley for 1 inch Wide Belts

TL72-L-100 - 3/8 inch Pitch 72 Tooth Tapered Bore Cast Iron Timing Pulley for 1 inch Wide Belts
$78.90 ex VAT
$78.90 ex VAT
Sale Sold out

Equivalent to: TL72L100

In stock

Price Break
3+ $52.84
5+ $49.88
9+ $49.28
19+ $48.69
49+ $48.09
74+ $47.50
99+ $44.53
199+ $43.94
249+ $43.34
499+ $42.75
999+ $41.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
72
Material:
Cast Iron
Belt Width Approx:
25.4mm = 1 inch
Pitch:
9.53mm = 0.375 (3/8) inch
Item Type:
Flangeless Tapered Bore Pulley

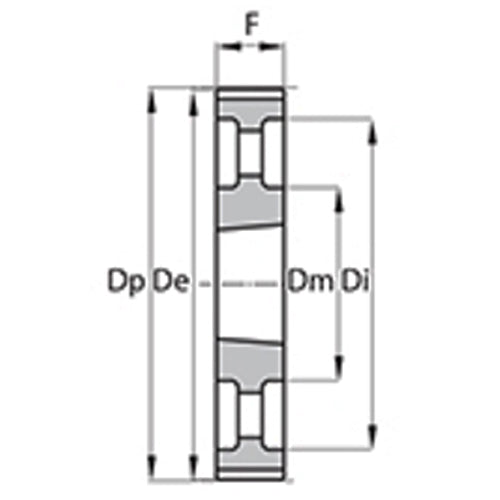

Technical
No. teeth 72
Dp 218.3mm
De 217.53mm
Dm 106mm
F 32mm
Material Cast Iron
Bore Tapered Bore
Belt Width 25.4mm = 1 inch
Pitch 9.53mm = 0.375 (3/8) inch
S 32mm
Di 202mm
Bush 2012
