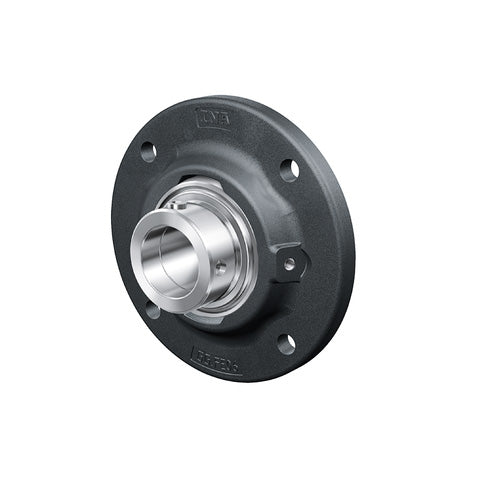

• INA TME40XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 40mm Bore
  • INA
1 2

SKU: TME40-XL-N-INA

INA TME40XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 40mm Bore

INA TME40XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 40mm Bore
$118.15 ex VAT
$118.15 ex VAT
Sale Sold out

In stock

Price Break
4+ $79.14
9+ $74.69
19+ $73.80
29+ $72.91
39+ $72.03
49+ $71.14
59+ $66.69
69+ $65.80
79+ $64.91
89+ $64.02
99+ $62.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
40mm
Style:
TME
Pitch Circle Diameter:
120mm
Technical
d 40mm
H 145mm
B1 56.5mm
A 23mm
A1 11.5mm
A2 1mm
d3 max 58mm
J 120
N 11.5mm
Q M6
S 2mm
U 33.9mm
Z 100mm (Tolerance: h8)
Mass 1.77 kg
Basic dynamic load rating Cr 34500 N
Basic static load rating Cor 19800 N
Designation of housing ME08
Designation of bearing GE40-XL-KTT-B
Bearing end cap, closed design (to be ordered seperately) KASK08
