SKU: TMEM1500-SKF

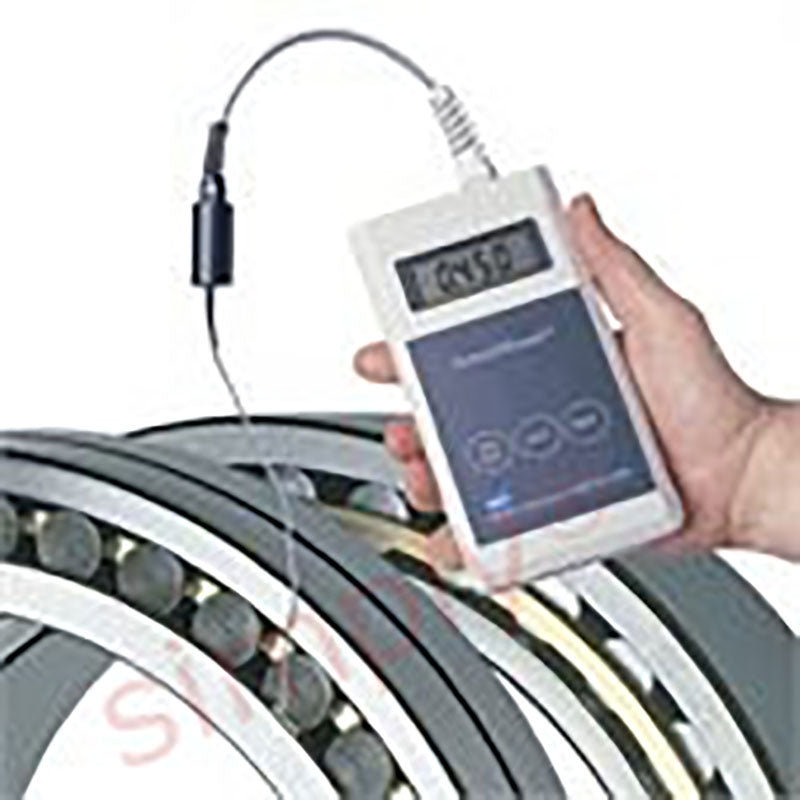

SKF TMEM1500 SensorMount Indicator
SKF TMEM1500 SensorMount Indicator
Out of stock
Share this product
Description
Description
| SKF TMEM1500 SensorMount: The SensorMount Indicator TMEM 1500 provides a direct reading of the fit of a SensorMount bearing mounted on a tapered seating. The SensorMount indicator is only compatible with SKF bearings, which are fitted with the SensorMount sensor. These bearings from SKF have designation suffixes ZE, ZEB, or ZEV, e.g. ZE 241/500 ECAK30/W33. The SensorMount indicator provides a numeric value, which guides the user in achieving a reliable bearing fit.SKF bearings fitted with the SensorMount system can also be mounted on adapter sleeves, withdrawal sleeves and hollow shafts. The material composition of the shaft has no effect on the proper operation of the SensorMount system. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| Range of Measurement | 0 to 1.500 o/oo |
|---|---|
| Power Supply | 9-volt alkaline battery, type IEC 6LR61 |
| Battery Life | 8 hours, continuous use |
| Low Battery Warning | Display shows "batt" |
| Auto shut-off | After 30 minutes of inactivity |
| Display | 4-digit LCD with fixed decimal |
| Operating Temperature Range | -10c to 50c |
| Accuracy | +/- 1%, +/- 2 digits |
| IP Rating | IP 40 |
| Size | 157x84x30mm (6.1x3.3x1.8 in.) |
