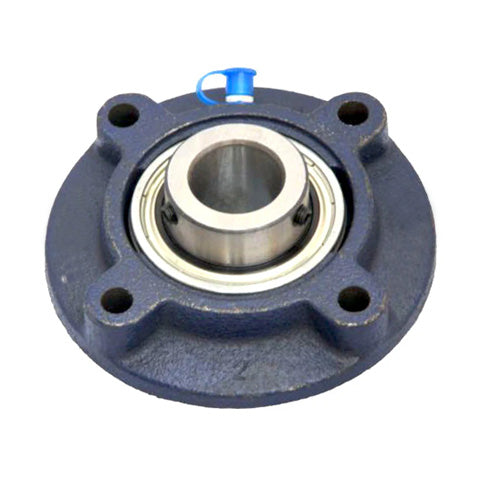

• RHP TMFC45 Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
1 1

SKU: TMFC45-RHP

RHP TMFC45 Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert

RHP TMFC45 Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
$180.66 ex VAT
$180.66 ex VAT
Sale Sold out

In stock

Price Break
10+ $121.01
20+ $114.21
30+ $112.85
40+ $111.49
50+ $110.13
75+ $108.77
100+ $101.97
200+ $100.62
250+ $99.26
500+ $97.90
1000+ $95.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
TMFC
Pitch Circle Diameter:
130.18mm
Technical
Bore 45mm
L 155.6mm
H 107.95mm
J 130.18mm
G 10mm
A1 39.67mm
A4 19mm
A5 6.4mm
B 51.59mm
s 19.1mm
d1 62.2mm
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.7 kg
Insert <a href="advanced_search_result.php?keywords=1050-45G+insonly">1050-45G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
