SKU: TRA1423

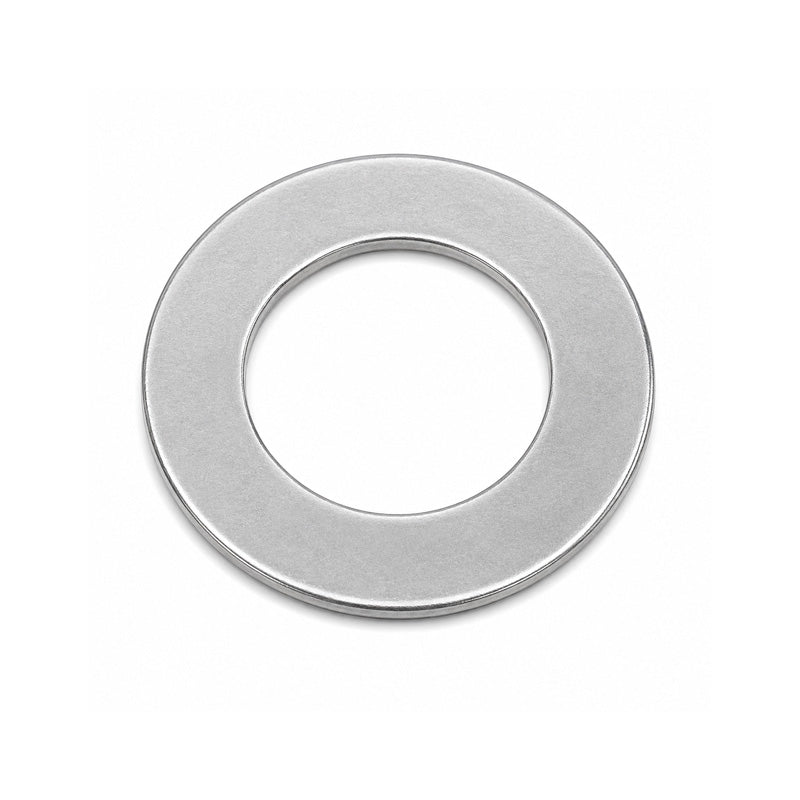

TRA1423 Needle Roller Thrust Washer 0.875x1.437x0.031 inch
TRA1423 Needle Roller Thrust Washer 0.875x1.437x0.031 inch
Regular price
$2.14
ex VAT
Regular price
Sale price
$2.14
ex VAT
In stock
Price Break
10+
$1.43
19+
$1.35
29+
$1.34
39+
$1.32
49+
$1.30
74+
$1.29
99+
$1.21
199+
$1.19
249+
$1.18
499+
$1.16
999+
$1.13
Quantity
Couldn't load pickup availability
Description
Description
|
TRA Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. The series consists of TRA, TRB, TRC, TRD and TRE washers varying in thickness only. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Width:
- 0.79mm = 0.031 (1/32) inch
Technical
Technical
| d | 0.875 inch |
|---|---|
| d1 | 1.437 inch |
| h min | 0.031 inch |
| h max | 0.032 inch |
| Bearing | NTA1423 |
| Pilot min | 0.872 inch |
| Pilot max | 0.875 inch |
| Dia to clear washer | 1.469 inch |
| Weight | 0.009 lbs |
