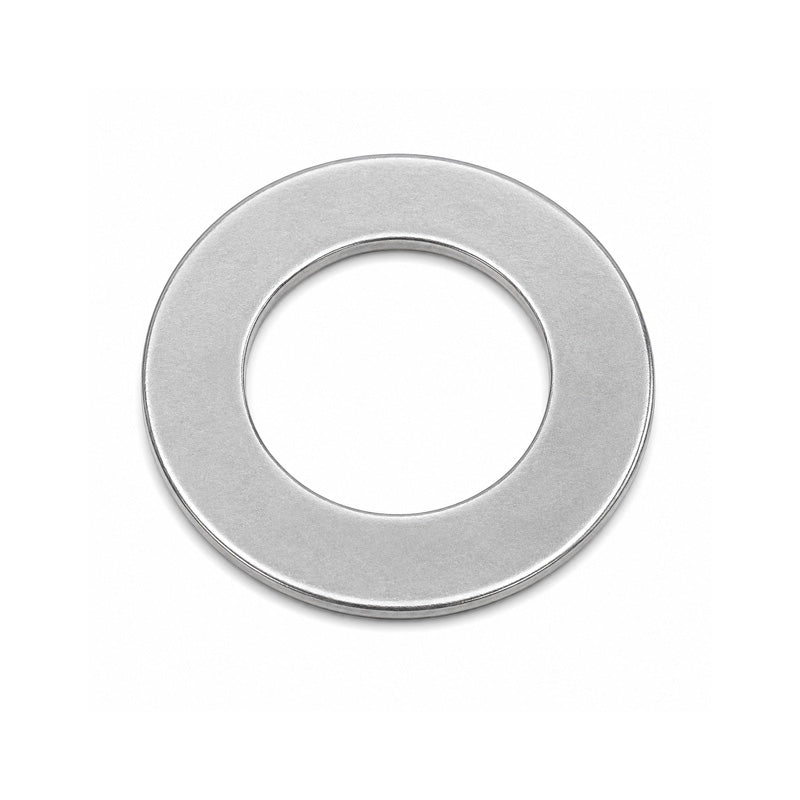

• INA TRA2435 Needle Roller Thrust Washer 1.5x2.187x0.031 inch
1 1

SKU: TRA2435-INA

INA TRA2435 Needle Roller Thrust Washer 1.5x2.187x0.031 inch

INA TRA2435 Needle Roller Thrust Washer 1.5x2.187x0.031 inch
$6.44 ex VAT
$6.44 ex VAT
Sale Sold out

In stock

Price Break
10+ $4.75
19+ $4.56
29+ $4.46
39+ $4.32
49+ $4.22
74+ $3.98
99+ $3.36
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
TRA Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. The series consists of TRA, TRB, TRC, TRD and TRE washers varying in thickness only.
Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive.
Brand / Quality:
INA - High Quality
Inside Diameter:
130mm
Outside Diameter:
170mm
Width:
1mm
Technical
d 1.5 inch
d1 2.187 inch
h min 0.031 inch
h max 0.032 inch
Bearing NTA2435
Pilot min 1.497 inch
Pilot max 1.500 inch
Dia to clear washer 2.219 inch
Weight 0.017 lbs
