SKU: TRA2840-MB

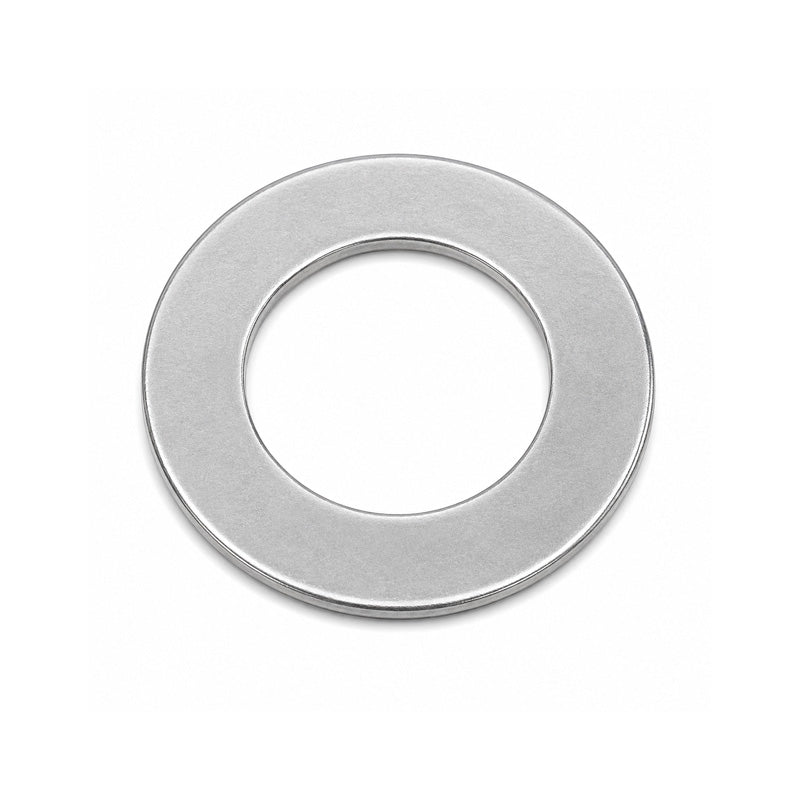

Major Brand TRA2840 Needle Roller Thrust Washer 1.75x2.5x0.031 inch - Allow 2-3 Days
Major Brand TRA2840 Needle Roller Thrust Washer 1.75x2.5x0.031 inch - Allow 2-3 Days
Out of stock
Description
Description
|
TRA Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. The series consists of TRA, TRB, TRC, TRD and TRE washers varying in thickness only. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Width:
- 0.79mm = 0.031 (1/32) inch
Technical
Technical
| d | 1.75 inch |
|---|---|
| d1 | 2.5 inch |
| h min | 0.031 inch |
| h max | 0.032 inch |
| Bearing | NTA2840 |
| Pilot min | 1.747 inch |
| Pilot max | 1.750 inch |
| Dia to clear washer | 2.531 inch |
| Weight | 0.021 lbs |
