SKU: TRD5266

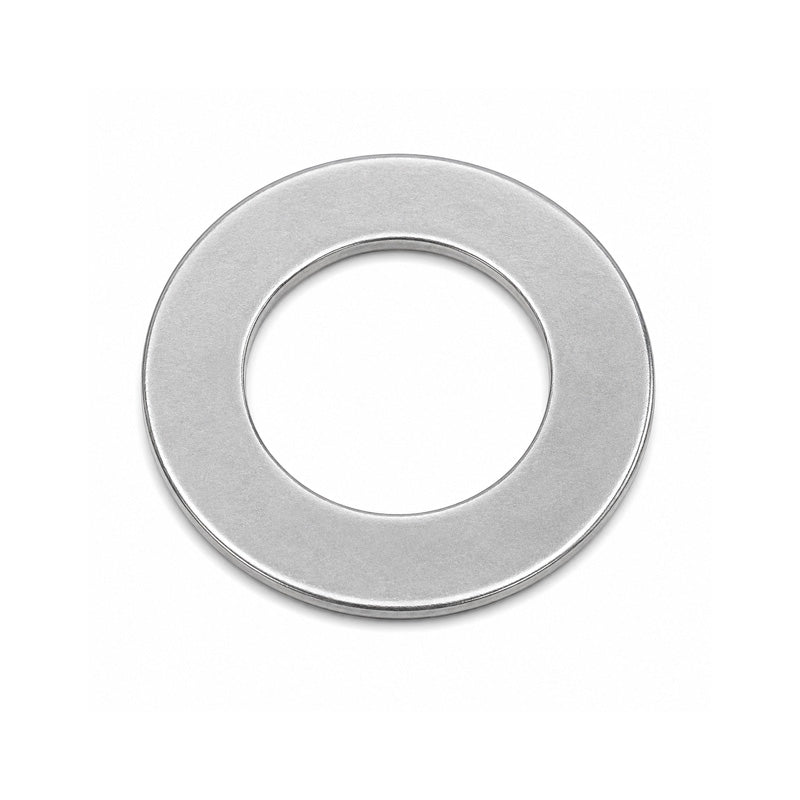

TRD5266 Needle Roller Thrust Washer 3.25x4.125x0.125 inch
TRD5266 Needle Roller Thrust Washer 3.25x4.125x0.125 inch
Out of stock
Description
Description
|
TRA Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. The series consists of TRA, TRB, TRC, TRD and TRE washers varying in thickness only. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Outside Diameter:
- 104.78mm = 4.125 (4-1/8) inch
- Width:
- 3.18mm = 0.125 (1/8) inch
Technical
Technical
| d | 3.25 inch |
|---|---|
| d1 | 4.125 inch |
| h min | 0.125 inch |
| h max | 0.126 inch |
| Bearing | NTA5266 |
| Pilot min | 3.247 inch |
| Pilot max | 3.250 inch |
| Dia to clear washer | 4.156 inch |
| Weight | 0.176 lbs |
