SKU: TS-N3/4-SE38-DUN

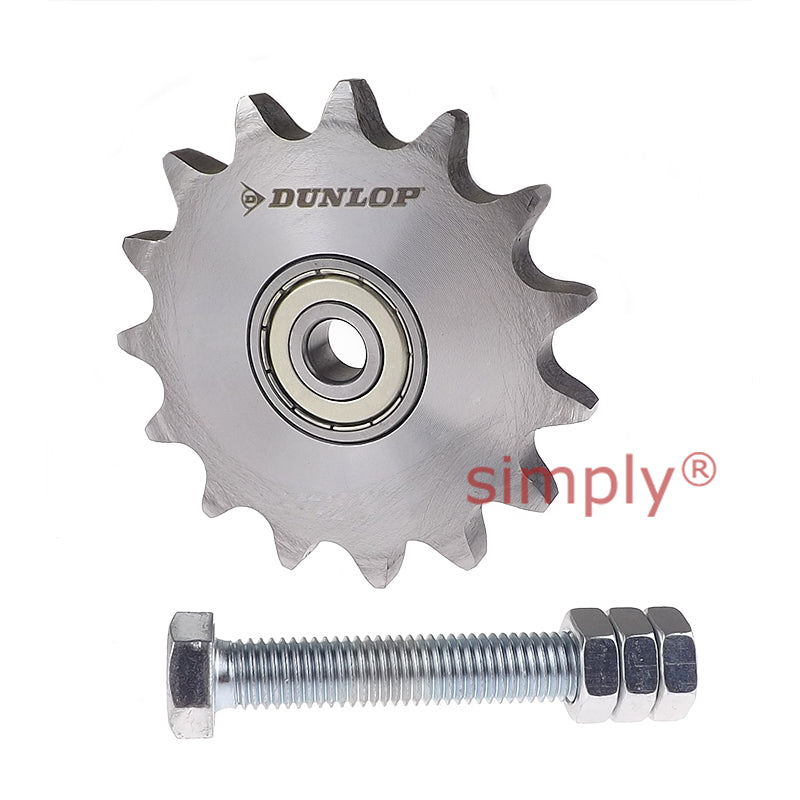

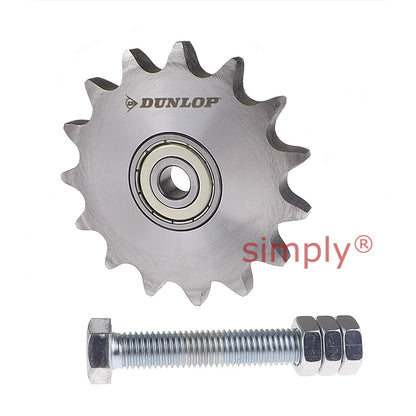

Dunlop 12BX15T N3/4 inch Sprocket for SE38 Tension Arm
- Regular price
- $25.33 ex VAT
- Sale price
- $25.33
- Regular price
-
Not in stock
Quantity Price Breaks
3
$22.54
5
$21.28
9
$21.02
19
$20.77
49
$20.52
74
$20.26
99
$19.00
199
$18.74
249
$18.49
499
$18.24
999
$17.73
SKU:
TS-N3/4-SE38-DUN
Dunlop 12BX15T N3/4 inch Sprocket for SE38 Tension Arm
- Regular price
- $25.33 ex VAT
- Sale price
- $25.33
- Regular price
-
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
Technical
| Part No. | = | N3/4 inch |
| No of Teeth | = | 15 |
| W | = | M20mm |
| L | = | 100mm |
| A | = | 20mm |
| B | = | 11.1mm |
| C | = | 15mm |
| D | = | 91.63mm |
| Torque Hex Nut 0.5d | = | 172 Nm |
| Adjusting Range Track R | = | 38mm |
| Size SE | = | 38 |
| To Fit Roller Chain ANSI | = | 60 |
| To Fit Roller Chain DIN 8187 | = | ISO 12 B |
